Resilient Wedge Gate Valve

SKU: GV Categories: Butterfy Valves, Check Valves, and Accessories, Valves

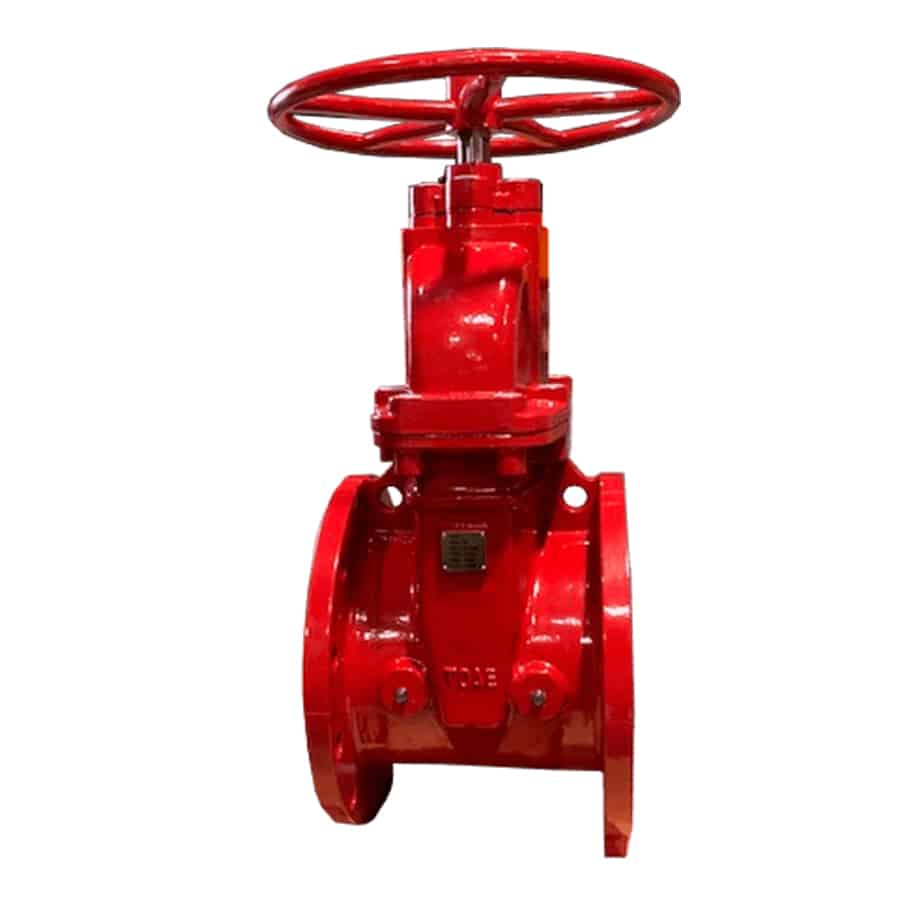

This industrial Resilient Wedge Gate Valve conforms to American Water Works Association (AWWA) C515 and ASME B16.10 standards, with a connecting flange to meet ANSI B16.5 #150 Class drill pattern specifications. Epoxy-coated for long-lasting performance.

Downloads:

Product Details

Related Products

Dimensions

Features

Design standards conform to AWWA C515
Full port design
Face to face conforms to ASME B16.10
The valve connecting flange in accordance with ANSI B16.5 Class 150
The body surface is internally and externally coated with epoxy

Dimensions

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

Part Number	Size	L	ΦD1	C	ΦD2	F	ØD3	N	a°	ΦD4	ØD
GVFF1000NRS	10″	330	405	29.2	323.8	2	362	12	15°	25.4	455
GVFF1200NRS	12″	356	485	30.8	381	2	432	12	15°	25.4	455

*Other sizes are available upon request, but not stocked in our warehouses, so they have an expected 90 day lead time

Operating Conditions

Working Pressure	300 PSI
Working Temperature	0°C – 80°C

Materials

Part	Material
Body	ASTM A536 65-45-12
Wedge	ASTM A536 65-45-12+NBR
Stem	AISI SS420
Bonnet	ASTM A536 65-45-12
Thrust collar	ASTM C51100
Gland	ASTM A536 65-45-12
DISC NUT	ASTM B62
Seal ring	EPDM
O-ring	EPDM
Dustproof cover	EPDM
Hexagon socket cap screws	GR 8.8
Handwheel	ASTM A536 65-45-12
Dust cap	ABS
Hexagon socket cap screws	GR 8.8
Washer	Carbon steel galvanized
Plug	ASTM SS304
Gasket	EPDM
Hexagon socket cap screws	GR 8.8
