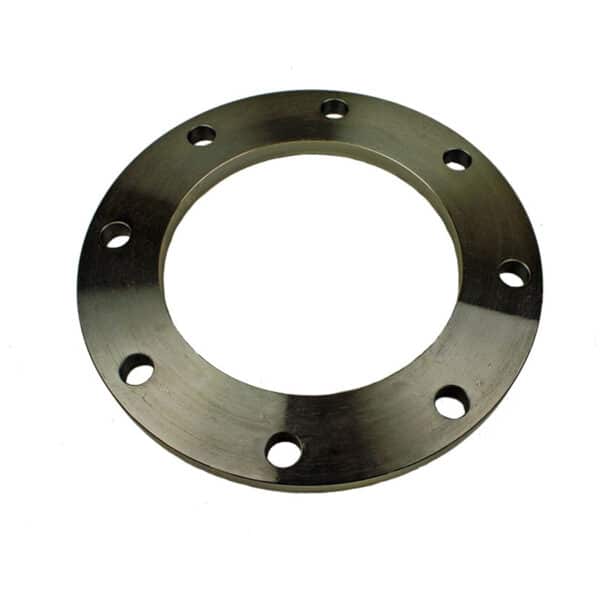

DIN-PN25 Steel Slip-On Flanges are pressure-rated to Deutsches Institute fur Normung (DIN) specification, and are ideal for creating access points in piping systems. This style is manufactured with dimensions and tolerances that comply with EN 1092-1:2007 specifications.
Downloads:
| API Part Number | Size in | Size mm | O.D. in | O.D. mm | I.D. in | I.D. mm | Ø B.H.C. in | Ø B.H.C. mm | Ø B.H. in | Ø B.H. mm | # B.H. | THK in | THK mm | Weight lb | Weight kg |
| DN0100-PN25 | 4 | 100 | 9.25 | 235 | 4.57 | 116.0 | 7.48 | 190 | 0.87 | 22 | 8 | 1.03 | 26 | 13.5 | 6.1 |
| DN0125-PN25 | 5 | 125 | 10.63 | 270 | 5.57 | 141.5 | 8.66 | 220 | 1.02 | 26 | 8 | 1.11 | 28 | 18.0 | 8.2 |
| DN0150-PN25 | 6 | 150 | 11.81 | 300 | 6.71 | 170.5 | 9.84 | 250 | 1.02 | 26 | 8 | 1.19 | 30 | 23.0 | 10.4 |
| DN0200-PN25 | 8 | 200 | 14.17 | 360 | 8.72 | 221.5 | 12.20 | 310 | 1.02 | 26 | 12 | 1.26 | 32 | 31.5 | 14.3 |
| DN0250-PN25 | 10 | 250 | 16.73 | 425 | 10.89 | 276.5 | 14.57 | 370 | 1.18 | 30 | 12 | 1.38 | 35 | 44.5 | 20.2 |
| DN0300-PN25 | 12 | 300 | 19.09 | 485 | 12.89 | 327.5 | 16.93 | 430 | 1.18 | 30 | 16 | 1.50 | 38 | 59.0 | 26.8 |
| DN0350-PN25 | 14 | 350 | 21.85 | 555 | 14.15 | 359.5 | 19.29 | 490 | 1.30 | 33 | 16 | 1.66 | 42 | 92.0 | 41.8 |
| DN0400-PN25 | 16 | 400 | 24.41 | 620 | 16.18 | 411.0 | 21.65 | 550 | 1.42 | 36 | 16 | 1.89 | 48 | 127.0 | 57.7 |
| DN0450-PN25 | 18 | 450 | 26.38 | 670 | 18.19 | 462.0 | 23.62 | 600 | 1.42 | 36 | 20 | 2.13 | 54 | 154.0 | 69.9 |
| DN0500-PN25 | 20 | 500 | 28.74 | 730 | 20.22 | 513.6 | 25.98 | 660 | 1.42 | 36 | 20 | 2.29 | 58 | 191.5 | 86.9 |
| DN0600-PN25 | 24 | 600 | 33.27 | 845 | 24.27 | 616.5 | 30.32 | 770 | 1.54 | 39 | 20 | 2.68 | 68 | 280.5 | 127.3 |
| DN0700-PN25 | 28 | 700 | 37.80 | 960 | 28.19 | 716.0 | 34.45 | 875 | 1.65 | 42 | 24 | 3.35 | 85 | 424.0 | 192.5 |
