Features
- Applicable for suction and delivery (discharge).
- Provides sound and vibration isolation.
- Gaskets and packing are not required.
- Floating flanges allow for easy installation.
- Prevents piping system and equipment breakdown by absorbing elongation and contraction caused by temperature variances.
- Absorbs water pulsation and minimizes water hammering.
- DIN PN10/PN16 drilled flanges available upon request (See DIN Flange section for dimensions)
Applications
- Pumps & air compressors in air conditioning system & sanitary equipment.
- Refrigeration systems and blowers in industrial plant equipment.
- Feed-water and drainage equipment in marine piping systems.
- Applicable for use in power generation and chemical plants.
- Marine applications

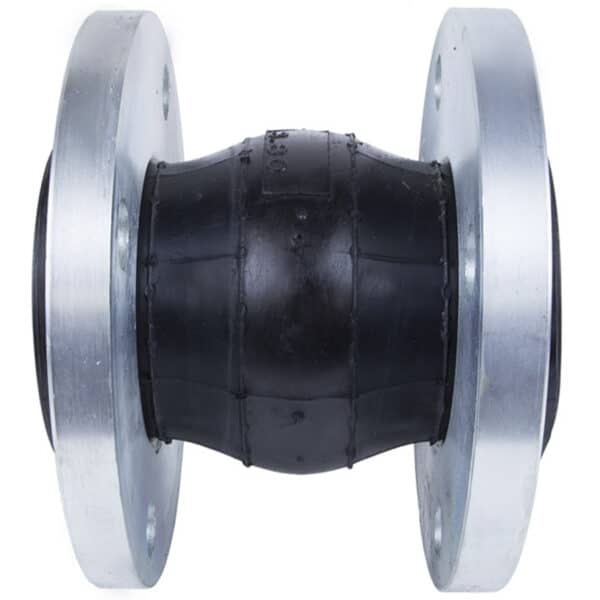

Specifications: Stainless Steel Single Sphere Molded Rubber Expansion Joints (SAMS Series)
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
| API Part Number |
Size |
Face To Face Dimensions |
Allowable Motion Ratings*
Compression |
Allowable Motion Ratings*
Elongation |
Allowable Motion Ratings*
Lateral |
Allowable Motion Ratings*
Angular |
Installation Tolerances
Compression |
Installation Tolerances
Elongation |
Installation Tolerances
Lateral |
Installation Tolerances
Angular |
| SAMS0100 |
1 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0125 |
1.25 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0150 |
1.5 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0200 |
2 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0250 |
2.5 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0300 |
3 |
6 |
0.50 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0400 |
4 |
6 |
0.63 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0500 |
5 |
6 |
0.63 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0600 |
6 |
6 |
0.63 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS0800 |
8 |
6 |
0.63 |
0.38 |
0.50 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS1000 |
10 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS1200 |
12 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS1400 |
14 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS1600 |
16 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS1800 |
18 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS2000 |
20 |
8 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
| SAMS2400 |
24 |
10 |
0.75 |
0.50 |
0.75 |
15 |
0.19 |
0.13 |
0.25 |
5 |
*Non Concurrent Ratings.
Warning: Do NOT elongate Rubber Expansion Joints when installing for suction service.
Part Number Scheme
| Part Number Section |
Options |
| Type |
SAMS = Single Sphere Flanged Expansion Joint (Stainless Steel) |
| Size |
XXXX = Size in inches going out 2 decimal places |
| Body Material |
NE = Neoprene
EP = EPDM
BN = Buna-N/Nitrile/NBR |
| Flange Material |
304L = 304L Stainless Steel
316L = 316L Stainless Steel |
| Class |
150 = 150# Drilling
300 = 300# Drilling
P10 = DIN PN10 Drilling
P16 = DIN PN16 Drilling |
| Example |
SAMS0200-NE-304L-150 = 2″ Single Sphere Expansion Joint with Neoprene Body and 304L Stainless Steel Flanges with 150# Drill Pattern |
Operating Conditions
| Size Range |
1” – 12” |
14” – 24” & 28″ |
| Operating Pressure |
up to 214 psi |
up to 114 psi |
| Operating Temp. Range* |
Neoprene: 14°F- 170°F
EPDM: 14°F- 210°F
Buna-N/Nitrile/NBR: 14°F- 170°F |
Neoprene: 14°F- 170°F
EPDM: 14°F- 210°F
Buna-N/Nitrile/NBR: 14°F- 170°F |
| Burst Pressure |
853 psi |
340 psi |
| Vacuum Rating* |
Contact API Sales |
Contact API Sales |
Warnings:
- Pressure ratings listed in the above table are for up to 110 Degrees F (for Neoprene), and 125 Degrees F (for EPDM). For elevated temperature service, please contact API Sales for actual working pressure ratings.
- Limit rods are required in systems that are unanchored and recommended in all other applications.
- Not for use in steam applications.

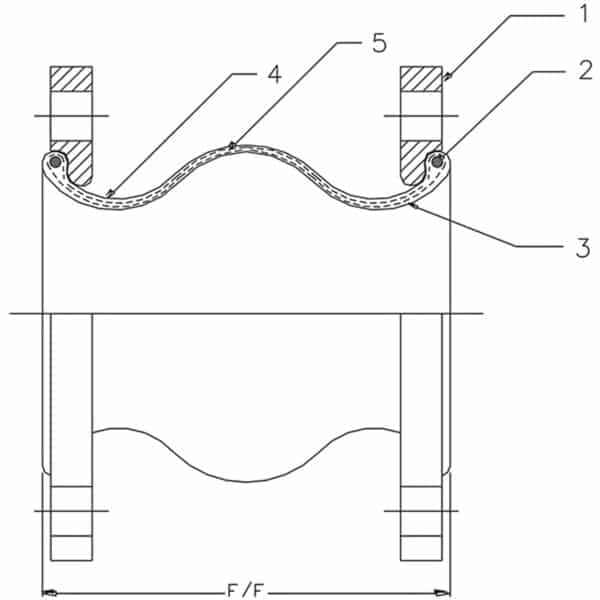

Materials
| Part |
Part Description |
Material |
| 1 |
Flanges |
Stainless Steel |
| 2 |
Reinforcing Wire |
Mild Steel Strands |
| 3 |
Tube |
Synthetic Rubber |
| 4 |
Cover |
Synthetic Rubber |
| 5 |
Reinforcing Fabric |
Synthetic Fiber |
Note: Customized for flanges ANSI-150, ANSI-300 and DIN
