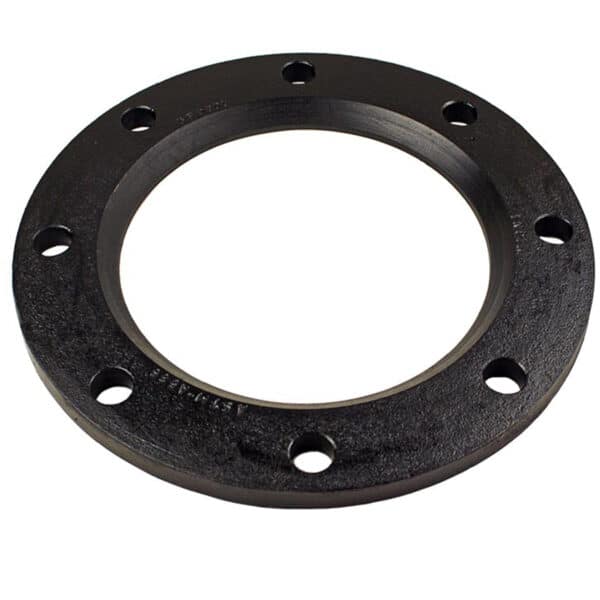

Ductile Iron Backing Flanges for Angle Face Rings are manufactured to meet ANSI #150 bolt pattern specifications. These flanges offer high strength and corrosion resistance and conform to ASTM A536 specifications. These hot-dipped galvanized flanges are being offered at discounted prices! Prices are included in the spec sheet below.
Downloads:

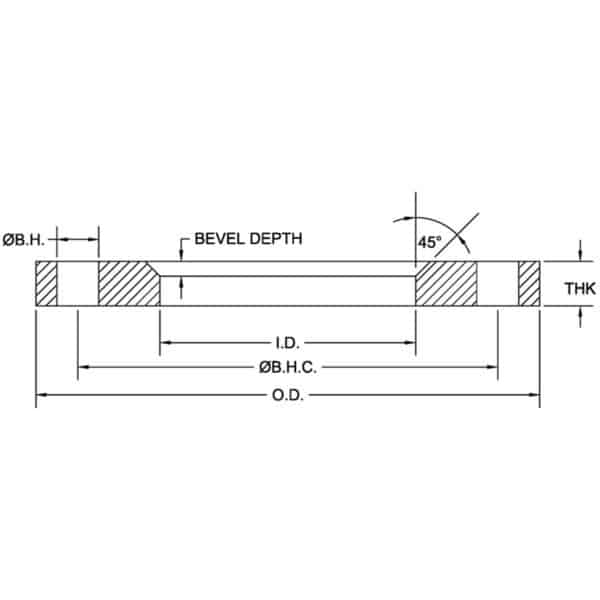

| API Part Number | Size | O.D. | I.D. | Ø B.H.C. | Ø B.H. | # B.H. | THK | Bevel Depth | Weight lbs | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| GABF0100-DI | 1 | 4.25 | 1.69 | 3.13 | 0.630 | 4 | 0.500 | 0.250 | 1.3 | $1.72 |
| GABF0200-DI | 2 | 6.00 | 2.88 | 4.75 | 0.750 | 4 | 0.500 | 0.250 | 2.5 | $4.08 |
| GABF0250-DI | 2.5 | 7.00 | 3.38 | 5.50 | 0.750 | 4 | 0.500 | 0.250 | 3.5 | $5.63 |
| GABF0300-DI | 3 | 7.50 | 4.00 | 6.00 | 0.750 | 4 | 0.500 | 0.250 | 4.0 | $6.00 |
| GABF0400-DI | 4 | 9.00 | 5.00 | 7.50 | 0.750 | 8 | 0.562 | 0.250 | 6.5 | $9.42 |
| GABF0500-DI | 5 | 10.00 | 6.06 | 8.50 | 0.875 | 8 | 0.500 | 0.250 | 7.0 | $8.29 |
| GABF0600-DI | 6 | 11.00 | 7.25 | 9.50 | 0.875 | 8 | 0.630 | 0.250 | 8.0 | $12.72 |
| GABF0800-DI | 8 | 13.50 | 9.25 | 11.75 | 0.875 | 8 | 0.630 | 0.250 | 11.5 | $18.00 |
| GABF1000-DI | 10 | 16.00 | 11.44 | 14.25 | 1.000 | 12 | 0.630 | 0.312 | 15.0 | $23.10 |
| GABF1200-DI | 12 | 19.00 | 13.63 | 17.00 | 1.000 | 12 | 0.750 | 0.312 | 26.0 | $39.00 |
| GABF1400-DI | 14 | 21.00 | 14.88 | 18.75 | 1.125 | 12 | 0.750 | 0.312 | 26.5 | $49.50 |
| GABF1800-DI | 18 | 25.00 | 18.88 | 22.75 | 1.250 | 16 | 0.880 | 0.375 | 42.0 | $75.30 |
| GABF2000-DI | 20 | 27.50 | 20.88 | 25.00 | 1.250 | 20 | 0.880 | 0.375 | 51.0 | $96.00 |
| GABF2400-DI | 24 | 32.00 | 24.88 | 29.50 | 1.375 | 20 | 1.000 | 0.375 | 76.0 | $138.00 |
| Part Number Section | Options |
| Type | Ductile Iron Backing Flanges for Angle Face Rings: ABF = Ductile Iron (Painted) GABF = Ductile Iron (Hot Dip Galvanized) SABF = Stainless Steel Ductile Iron Backing Flanges for Stub End: BF = Ductile Iron (Painted) GBF = Ductile Iron (Hot Dip Galvanized) |
| Size | XXXX = Size in inches going out 2 decimal places |
| Other | 16 =O.D. Tube Size DI = Ductile Iron |
