Wafer Style Butterfly Valves with Gear Operator

SKU: BVG Categories: Butterfly Valves, Check Valves, and Accessories, Valves

This Wafer Style Butterfly Valve with Gear Operator is manufactured with an epoxy-coated ductile iron body for high strength and corrosion resistance. A ductile iron disk is standard, with aluminum bronze or stainless steel available upon request.

Downloads:

Size

Clear

Add to Quote

Product Details

Dimensions

Features

Operator flange conforms to ISO 5211. Designed to work with manual, pneumatic or electric actuators.
The rubber seat is non-collapsible, stretch-resistant, and blowout-proof.
The precision machined disc ensures low operating torque and effective sealing up to 200 psi. The hydro-dynamically designed disc allows for high-capacity flow.
A one-piece shaft design ensures dependability and positive disc positioning.
The valves are epoxy coated and incorporate “zerk”-style grease fittings for easy lubrication of the neck and gearbox (if applicable).

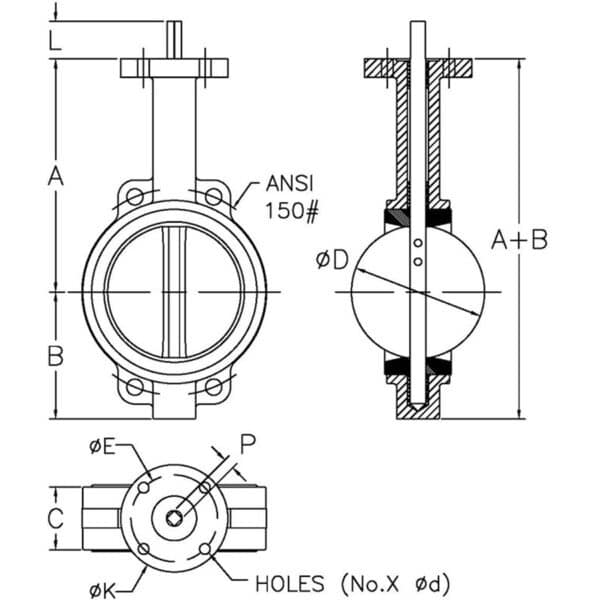

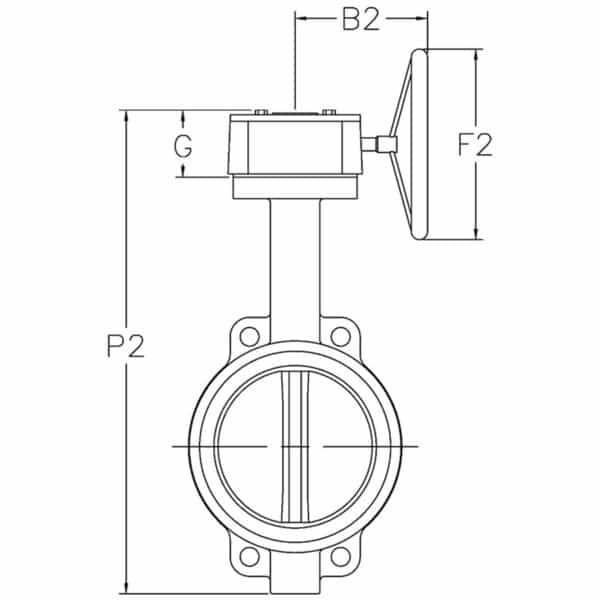

Dimensions: Wafer Style Butterfly Valves with Gear Operator

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

API Part Number	SIZE	A	B	A+B	C	Ø E	Ø K	L	P	HOLES (No.X Ød)	B 2	G	P 2	F 2
BVG0200-NPDI-BN	2	5.55	2.80	8.35	1.69	1.97	2.56	1.18	0.354	4 x 0.276	6.06	2.52	10.87	5.91
BVG0250-NPDI-BN	2.5	6.06	2.87	8.94	1.81	1.97	2.56	1.18	0.354	4 x 0.276	6.06	2.52	11.46	5.91
BVG0300-NPDI-BN	3	6.18	3.90	10.08	1.81	1.97	2.56	1.18	0.354	4 x 0.276	6.06	2.52	12.60	5.91
BVG0400-NPDI-BN	4	6.89	4.49	11.38	2.05	2.76	3.54	1.18	0.433	4 x 0.394	6.06	2.52	13.90	5.91
BVG0500-NPDI-BN	5	7.36	5.00	12.36	2.20	2.76	3.54	1.18	0.551	4 x 0.394	6.06	2.52	14.88	5.91
BVG0600-NPDI-BN	6	8.07	5.51	13.58	2.20	2.76	3.54	1.18	0.551	4 x 0.394	6.06	2.52	16.10	5.91
BVG0800-NPDI-BN	8	9.21	6.89	16.10	2.36	4.02	4.92	1.34	0.669	4 x 0.472	8.82	2.91	19.01	11.22
BVG1000-NPDI-BN	10	10.98	8.27	19.25	2.68	4.02	4.92	1.34	0.866	4 x 0.472	8.82	2.91	22.16	11.22
BVG1200-NPDI-BN	12	12.32	9.65	21.97	3.07	4.02	4.92	1.34	0.866	4 x 0.472	8.46	2.95	24.92	11.22
BVG1400-NPDI-BN	14	14.17	10.51	24.69	3.07	4.92	5.91	1.77	0.866	4 x 0.551	8.27	5.04	29.73	11.22
BVG1600-NPDI-BN	16	15.47	12.01	27.48	4.02	5.51	6.89	2.05	1.063	4 x 0.709	10.16	5.04	32.52	11.22
BVG1800-NPDI-BN	18	16.38	12.76	29.13	4.49	5.51	6.89	2.05	1.063	4 x 0.709	10.16	5.04	34.17	11.22
BVG2000-NPDI-BN	20	18.35	14.25	32.60	5.00	5.51	6.89	2.52	1.063	4 x 0.709	11.22	5.04	37.64	15.16
BVG2400-NPDI-BN	24	22.13	17.48	39.61	6.06	6.50	8.27	2.76	1.417	4 x 0.709	11.22	5.51	45.12	15.16
BVG2800-NPDI-BN	28	24.63	20.50	45.13	6.50	10.00	11.81	3.74	2.490	8 x 0.866	14.13	6.22	51.38	16.75

Part Number Structure

Part Number Section	Options
Type	BVG = Gear Operated Butterfly Valve
Size	XXXX = Size in inches going out 2 decimal places
Disc Material	NPDI = Nickel Plated Ductile Iron
Seat Material	BN = NBR

Operating Conditions

Nominal Size		2″-12″	14″-24″
Operating Pressure		200psi	150psi
Test Pressure	Shell	300psi	300psi
	Seat	220psi	170psi
Working Temperature	NBR Seat	25°-190° F	25°-190° F

Materials

PART	MATERIAL
Body	Epoxy Coated Ductile Iron
Disc	Nickel Plated Ductile Iron
Shaft	400 Series Stainless
Seat	NBR
Pin	Stainless Steel

Applicable Flanges for Wafer Style Butterfly Valves with Gear Operator:

ANSI Class 150 Steel Slip-On Plate Flanges: Meets AWWA C207-13 and ANSI #150 bolt pattern specifications. Specific grades of steel for structural or critical applications are available upon request.
ANSI Class 150 Stainless Steel Slip-On Plate Flanges: Available in ATSM grades 304L & 316L. This slip-on flange style meets ANSI #150 drill pattern specifications.

Notes:

Disc materials are also available in Aluminum, Bronze, and Stainless Steel (may be subject to minimum order quantity)
Seat is available in other materials, including EPDM (may be subject to minimum order quantity)
