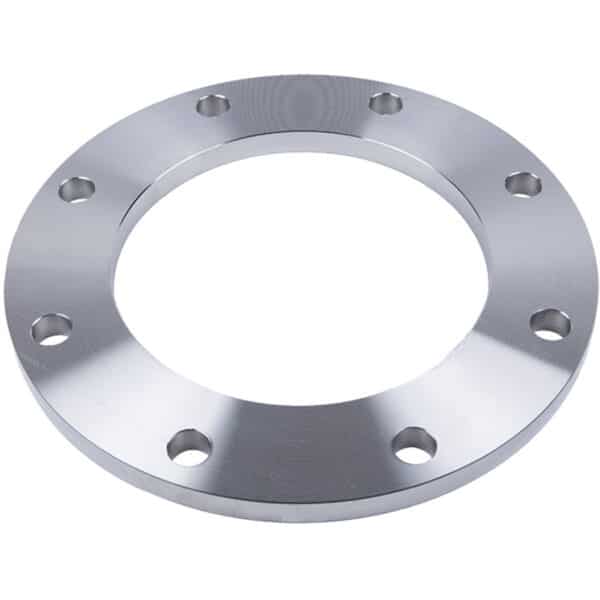

These DIN-PN16 Stainless Steel Slip-On Flanges are available in stainless steel grades 304L and 316L. These flanges have a pressure rating of up to 16 bar and meet Deutsches Institut für Normung (DIN) EN 1092-1 specifications.
Downloads:

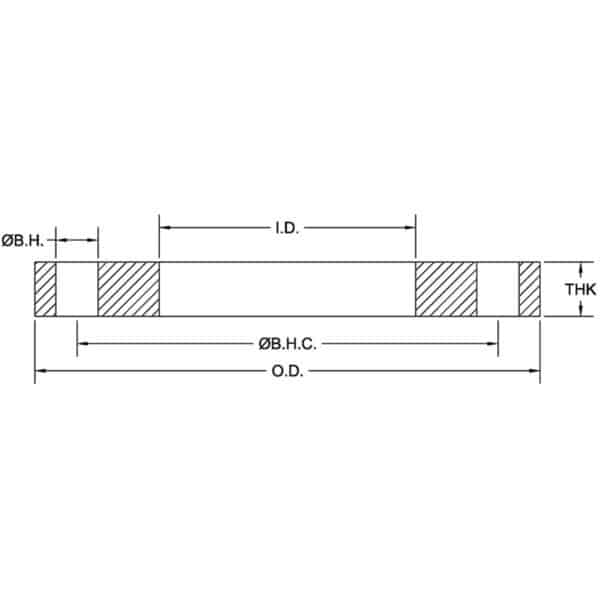

| API Part Number | Size in | Size mm | O.D. in | O.D. mm | I.D. in | I.D. mm | Ø B.H.C. in | Ø B.H.C. mm | Ø B.H. in | Ø B.H. mm | # B.H. | THK in | THK mm | Weight lbs | Weight kg |
| SDN0050-PN16 | 2 | 50 | 6.50 | 165 | 2.42 | 61.5 | 4.92 | 125 | 0.71 | 18 | 4 | 0.79 | 20 | 6.0 | 2.7 |
| SDN0065-PN16 | 2.5 | 65 | 7.28 | 185 | 3.05 | 77.5 | 5.71 | 145 | 0.71 | 18 | 4 | 0.79 | 20 | 7.0 | 3.2 |
| SDN0080-PN16 | 3 | 80 | 7.87 | 200 | 3.56 | 90.5 | 6.30 | 160 | 0.71 | 18 | 8 | 0.79 | 20 | 7.8 | 3.5 |
| SDN0100-PN16 | 4 | 100 | 8.66 | 220 | 4.57 | 116.0 | 7.09 | 180 | 0.71 | 18 | 8 | 0.87 | 22 | 10.0 | 4.5 |
| SDN0125-PN16 | 5 | 125 | 9.84 | 250 | 5.57 | 141.5 | 8.27 | 210 | 0.71 | 18 | 8 | 0.87 | 22 | 12.0 | 5.4 |
| SDN0150-PN16 | 6 | 150 | 11.22 | 285 | 6.72 | 170.5 | 9.45 | 240 | 0.87 | 22 | 8 | 0.94 | 24 | 16.0 | 7.3 |
| SDN0200-PN16 | 8 | 200 | 13.39 | 340 | 8.72 | 221.5 | 11.61 | 295 | 0.87 | 22 | 12 | 1.03 | 26 | 21.5 | 9.5 |
| SDN0250-PN16 | 10 | 250 | 15.94 | 405 | 10.89 | 276.5 | 13.97 | 355 | 1.02 | 26 | 12 | 1.14 | 29 | 31.0 | 14.1 |
| SDN0300-PN16 | 12 | 300 | 18.11 | 460 | 12.89 | 327.5 | 16.14 | 410 | 1.02 | 26 | 12 | 1.26 | 32 | 42.7 | 19.4 |
| SDN0350-PN16 | 14 | 350 | 20.47 | 520 | 14.15 | 359.5 | 18.50 | 470 | 1.02 | 26 | 16 | 1.38 | 35 | 62.3 | 28.3 |
| SDN0400-PN16 | 15 | 400 | 22.83 | 580 | 16.18 | 411.0 | 20.67 | 525 | 1.18 | 30 | 16 | 1.50 | 38 | 80.5 | 36.5 |
| SDN0450-PN16 | 17 | 450 | 25.20 | 640 | 18.19 | 462.0 | 23.03 | 585 | 1.18 | 30 | 20 | 1.65 | 42 | 110.3 | 50.1 |
| SDN0500-PN16 | 19 | 500 | 28.15 | 715 | 20.22 | 513.5 | 25.59 | 650 | 1.30 | 33 | 20 | 1.81 | 46 | 141.5 | 64.2 |
| SDN0600-PN16 | 24 | 600 | 33.07 | 840 | 24.27 | 616.5 | 30.32 | 770 | 1.42 | 36 | 20 | 2.17 | 55 | 213.5 | 96.9 |
