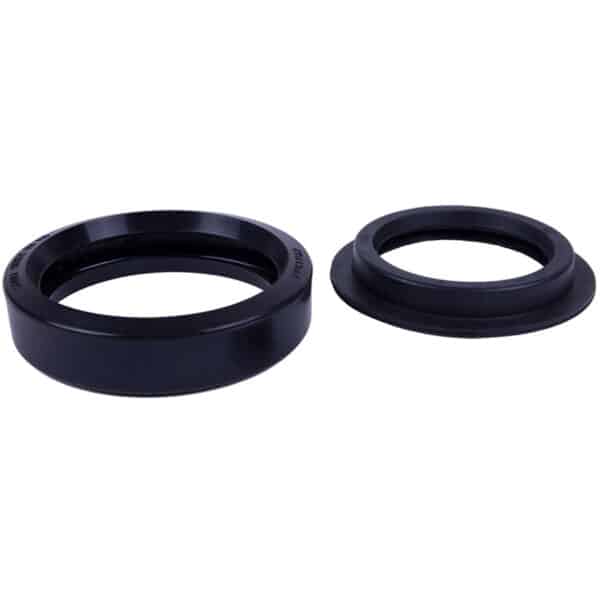

Dimensions: KLAMPz KGE Series Gaskets
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
| Nominal Size |
Pipe OD |
| 1.5 |
1.900 |
| 2 |
2.375 |
| 2.5 |
2.875 |
| 3 |
3.500 |
| 4 |
4.500 |
| 5 |
5.563 |
| 6 |
6.625 |
| 8 |
8.625 |
| 10 |
10.750 |
| 12 |
12.750 |
| 14 |
14.000 |
| 16 |
16.000 |
PART NUMBER STRUCTURE
| Size Range |
1.25″-14″ |
| Type |
KGE |
| Size |
xxxx (4-digits) / (Example: Size=1.25 = 0125) |
| Model |
K05 & K07 = BLANK
K41 = -K41 |
| Example |
KGE0400-41 (K41) / KGE0125 (K05 & K07) |
Notes:
- EPDM: TEMPERATURE RANGE (-34ºC) -30ºF (+110ºC) +230ºF. Suitable for water, non-oil, dilute acids, alkaline salt and many non-hydrocarbon chemicals. DO NOT USE FOR HYDROCARBON SERVICES.
- Always lubricate gaskets with inert soap-based lube to avoid pinching during installation.
- UL-listed and FM-approved
