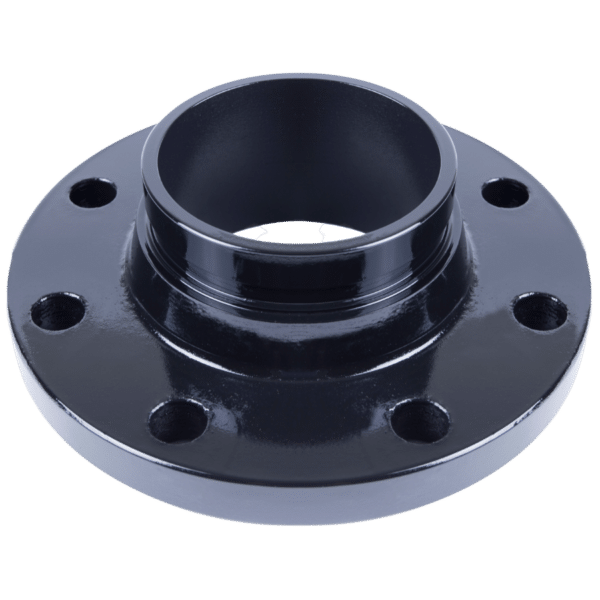

These Flat Face Weld Neck Flanges are fully machined and made of A105 Mild Steel. These Weld Neck are being offered at discount prices!
Downloads:
| API Part Number | Nominal Size | ANSI Class | O.D. | THK | B.H.C. | B.H.C. Dia | # of Bolts | L | H.D. | R.H. (Rad.) | “A” Dia. | Weight (Lbs.) | Material |
| FFWN0200 | 2 | 150 | 6.00 | 0.750 | 4.750 | 0.750 | 4 | 2.50 | 3.0630 | 0.1875 | 2.38 | 6 | A105 Mild Steel |
| FFWN0200-30 | 2 | 300 | 6.50 | 0.875 | 5.000 | 0.750 | 8 | 2.75 | 3.3125 | 0.1875 | 2.38 | 9 | A105 Mild Steel |
| FFWN0400-30 | 4 | 300 | 10.00 | 1.250 | 7.875 | 0.875 | 8 | 3.38 | 5.7500 | 0.1875 | 54.50 | 25 | A105 Mild Steel |
| FFWN0600-30 | 6 | 300 | 12.50 | 1.438 | 10.625 | 0.875 | 12 | 3.88 | 8.1250 | 0.2500 | 6.63 | 42 | A105 Mild Steel |
| FFWN0800-30 | 8 | 300 | 15.00 | 1.625 | 13.000 | 1.000 | 12 | 4.38 | 10.2500 | 0.2500 | 8.63 | 67 | A105 Mild Steel |
| FFWN1000 | 10 | 150 | 16.00 | 1.190 | 14.250 | 1.000 | 12 | 4.00 | 12.0000 | 0.2500 | 10.75 | 52 | A105 Mild Steel |
| FFWN1000 | 10 | 150 | 16.00 | 1.190 | 14.250 | 1.000 | 12 | 4.00 | 12.0000 | 0.2500 | 10.75 | 52 | A105 Mild Steel |
| FFWN1000-30 | 10 | 300 | 17.50 | 1.875 | 15.250 | 1.125 | 16 | 4.63 | 12.6250 | 0.2500 | 10.75 | 91 | A105 Mild Steel |
| FFWN1200-30 | 12 | 300 | 20.50 | 2.000 | 17.750 | 1.250 | 16 | 5.13 | 14.7500 | 0.3125 | 12.75 | 140 | A105 Mild Steel |
| FFWN1400 | 14 | 150 | 21.00 | 1.380 | 18.750 | 1.125 | 12 | 5.00 | 15.7500 | 0.3125 | 14.00 | 110 | A105 Mild Steel |
| FFWN1600-30 | 16 | 300 | 25.50 | 2.250 | 22.500 | 1.375 | 20 | 5.75 | 19.0000 | 0.3125 | 16.00 | 250 | A105 Mild Steel |
| FFWN1800 | 18 | 150 | 25.00 | 1.563 | 22.750 | 1.250 | 16 | 5.50 | 19.8800 | 0.3125 | 18.00 | 150 | A105 Mild Steel |
| FFWN2000 | 20 | 150 | 27.50 | 1.690 | 25.000 | 1.250 | 20 | 5.69 | 22.0000 | 0.3125 | 20.00 | 180 | A105 Mild Steel |
| FFWN2400-30 | 24 | 300 | 36.00 | 2.750 | 32.000 | 1.625 | 24 | 6.63 | 27.6250 | 0.3125 | 24.00 | 580 | A105 Mild Steel |
| FFWN3000-A | 30 | 150 | 38.75 | 2.940 | 36.000 | 1.380 | 28 | 5.38 | 30.7500 | 0.4400 | 30.00 | 400 | A105 Mild Steel |
| FFWN3000-CL125 | 30 | 125 | 38.75 | 2.130 | 36.000 | 1.380 | 28 | 5.13 | 32.7500 | 0.3130 | 30.00 | 870 | A105 Mild Steel |
| FFWN3600-A | 36 | 150 | 46.00 | 3.560 | 42.750 | 1.630 | 32 | 6.19 | 36.7500 | 0.5000 | 36.00 | 640 | A105 Mild Steel |
| FFWN3600-A-30 | 36 | 300 | 50.00 | 4.120 | 46.000 | 2.130 | 32 | 9.50 | 39.0000 | 0.5000 | 36.00 | 1275 | A105 Mild Steel |
| FFWN3600-CL125 | 36 | 125 | 46.00 | 2.380 | 42.750 | 1.630 | 32 | 5.38 | 39.2500 | 0.3130 | 36.00 | 1275 | A105 Mild Steel |
| FFWN4200-A | 42 | 150 | 53.00 | 3.810 | 49.500 | 1.630 | 36 | 6.75 | 43.0000 | 0.5000 | 42.00 | 890 | A105 Mild Steel |
| FFWN4200-A-30 | 42 | 300 | 50.75 | 4.690 | 47.500 | 1.750 | 32 | 7.88 | 43.2500 | 0.5000 | 42.00 | 950 | A105 Mild Steel |
| FFWN4200-CL125 | 42 | 125 | 53.00 | 2.630 | 49.500 | 1.630 | 36 | 5.63 | 46.0000 | 0.3750 | 42.00 | 950 | A105 Mild Steel |
| FFWN4800-B-30 | 48 | 300 | 59.50 | 5.000 | 55.750 | 2.000 | 40 | 8.75 | 50.3100 | 0.3750 | 48.31 | 1575 | A105 Mild Steel |
