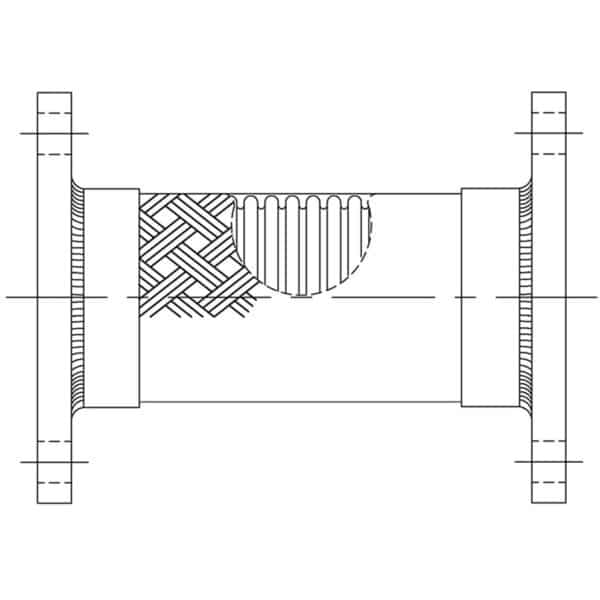

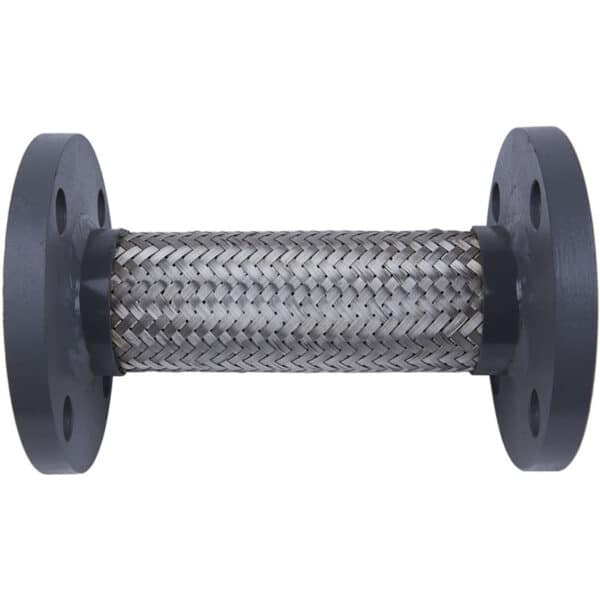

Dimensions: Stainless Steel Braided Flange X Flange Pump Connector
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
| API Part Number |
Size |
Overall Length |
Operating Pressure* Up To 70° F (psi) |
Operating Pressure* Up To 250° F (psi) |
Flange Thickness |
Approximate Weight lbs |
| PCF0200-SSB |
2 |
9 |
300 |
276 |
0.625 |
11 |
| PCF0250-SSB |
2.5 |
9 |
350 |
322 |
0.625 |
14 |
| PCF0300-SSB |
3 |
9 |
300 |
276 |
0.625 |
15 |
| PCF0400-SSB |
4 |
9 |
250 |
230 |
0.625 |
20 |
| PCF0500-SSB |
5 |
11 |
175 |
161 |
0.750 |
28 |
| PCF0600-SSB |
6 |
11 |
165 |
152 |
0.750 |
33 |
| PCF0800-SSB |
8 |
12 |
150 |
138 |
1.000 |
52 |
| PCF0800-SBB |
8 |
12 |
174 |
160 |
1.000 |
52 |
| PCF1000-SSB |
10 |
13 |
140 |
129 |
1.000 |
74 |
| PCF1000-SBB |
10 |
13 |
180 |
165 |
1.000 |
74 |
| PCF1200-SSB |
12 |
14 |
130 |
119 |
1.000 |
100 |
| PCF1400-SSB |
14 |
14 |
125 |
115 |
1.000 |
108 |
Notes:
- Pump Connectors are designed to absorb pump vibration, plus 1/8” misalignment.
- Working pressures are based on simple pump vibration in a static installation and may vary based on specific application.
- For elevated temperature service (above 250°F.), please contact API Sales for actual working pressure ratings.
Part Number Structure
| Part Number Section |
Options |
| Type |
PCF = Flanged Pump Connector |
| Size |
XXXX = Size in inches going out 2 decimal places |
| Braid Type |
SSB = Single Standard Braid
SBB = Single Braided Braid |
Materials
| Part |
Material |
| Hose |
300 Series Stainless Steel |
| Braid |
300 Series Stainless Steel |
| Collar |
300 Series Stainless Steel |
| Flanges |
Steel – 150# Drill Pattern |
