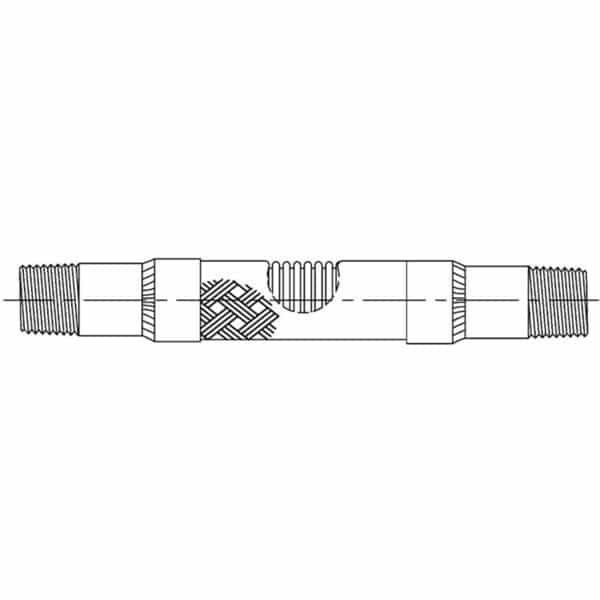

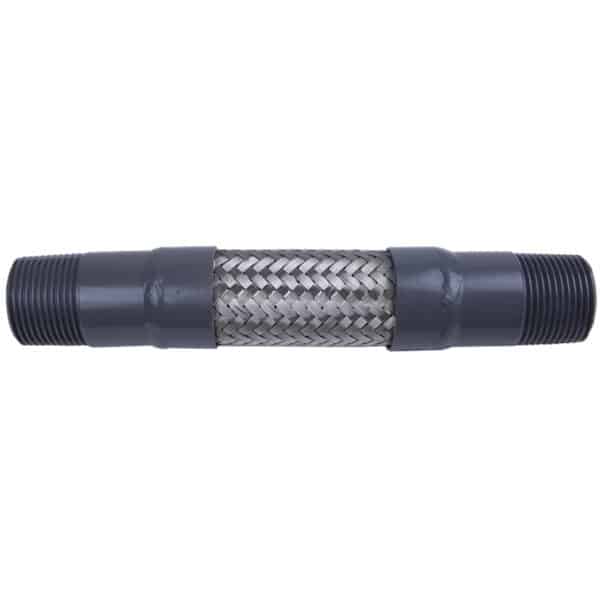

Dimensions: Stainless Steel Braided Male X Male Pump Connector
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
| API Part Number |
Size |
Overall Length |
Operating Pressure* Up To 70° F (psi) |
Operating Pressure* At 250° F (psi) |
Approximate Weight lbs |
| PCT0050-SSB |
0.5 |
6.5 |
825 |
760 |
0.5 |
| PCT0075-SSB |
0.75 |
7.0 |
487 |
448 |
0.8 |
| PCT0100-SSB |
1 |
8.0 |
475 |
437 |
1.0 |
| PCT0125-SSB |
1.25 |
8.5 |
425 |
391 |
1.5 |
| PCT0150-SSB |
1.5 |
9.0 |
425 |
391 |
2.0 |
| PCT0200-SSB |
2 |
10.5 |
300 |
276 |
2.5 |
| PCT0250-SSB |
2.5 |
12.0 |
350 |
322 |
3.0 |
| PCT0300-SSB |
3 |
14.0 |
300 |
276 |
5.0 |
| PCT0400-SSB |
4 |
16.0 |
250 |
230 |
8.0 |
Notes:
- Pump Connectors are designed to absorb pump vibration, plus 1/8” misalignment.
- Working pressures are based on simple pump vibration in a static installation and may vary based on specific application.
- For elevated temperature service (above 250°F.), please contact API Sales for actual working pressure ratings.
Part Number Structure
| Part Number Section |
Options |
| Type |
PCT = Threaded Pump Connector |
| Size |
XXXX = Size in inches going out 2 decimal places |
| Braid Type |
SSB = Single Standard Braid
SBB = Single Braided Braid |
Materials
| Part |
Material |
| Hose |
300 Series Stainless Steel |
| Braid |
300 Series Stainless Steel |
| Collars |
300 Series Stainless Steel |
| Ends |
Male x Male NPT Steel |
