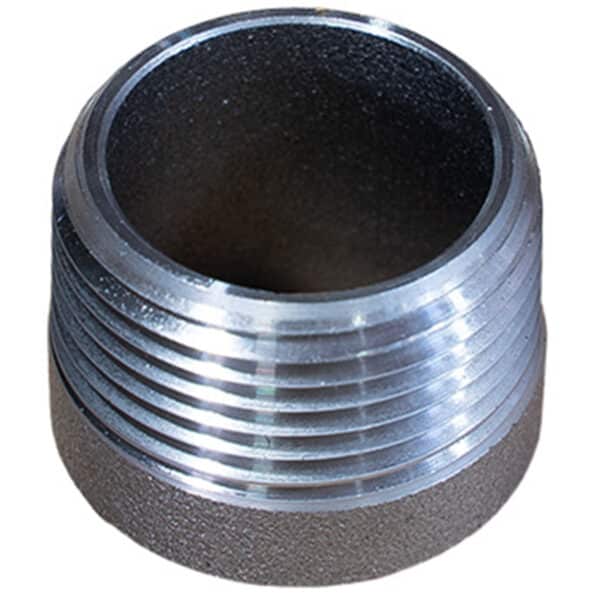

Threaded One End Nipples

Complete piping systems with Threaded One-End (TOE) Nipple pipe fittings, manufactured in a range of tube sizes for easy threaded connections. These nipple pipe fittings are available in the tube sizes, threads-per-inch, and lengths you require.

Downloads:

Add to Quote

Product Details

Dimensions (O.D. Tube Sizes): Threaded One End Nipples

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
API Part Number Nominal Pipe Size (inches) OD End to End Length Threads per Inch Min. Thread Length Min. Wall Thickness
TOE0075-1.0 0.75 1.050 1.00 14.0 0.65 0.113
TOE0075-3.0 0.75 1.050 3.00 14.0 0.65 0.113
TOE0100-1.0 1.00 1.315 1.00 11.5 0.65 0.133
TOE0100-3.0 1.00 1.315 3.00 11.5 0.65 0.133
TOE0125-1.5 1.25 1.660 1.50 11.5 0.93 0.140
TOE0125-3.0 1.25 1.660 3.00 11.5 0.93 0.140
TOE0200-2.0 2.00 2.375 2.00 11.5 1.10 0.154
TOE0200-3.0 2.00 2.375 3.00 11.5 1.10 0.154
TOE0250-2.0 2.50 2.875 2.00 8.0 1.30 0.203
TOE0300-3.0 3.00 3.500 3.00 8.0 1.65 0.216
TOE0300-4.0 3.00 3.500 4.00 8.0 1.65 0.216
TOE0400-4.0 4.00 4.500 4.00 8.0 1.75 0.237
TOE0500-4.0 5.00 5.563 4.00 8.0 1.85 0.258
TOE0600-4.0 6.00 6.625 4.00 8.0 2.00 0.280
TOE0600-4.5 6.00 6.625 4.50 8.0 2.00 0.280
TOE0600-6.0 6.00 6.625 6.00 8.0 2.00 0.280
TOE0800-4.0 8.00 8.625 4.00 8.0 2.15 0.322
TOE0800-6.0 8.00 8.625 6.00 8.0 2.15 0.322
  Notes:
  • Threaded One End Nipples material is mild steel
  • NPT threads in accordance with ANSI B2.1
