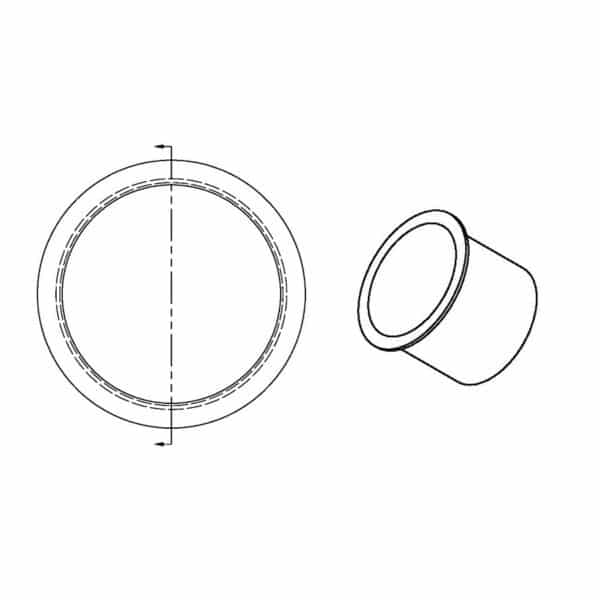

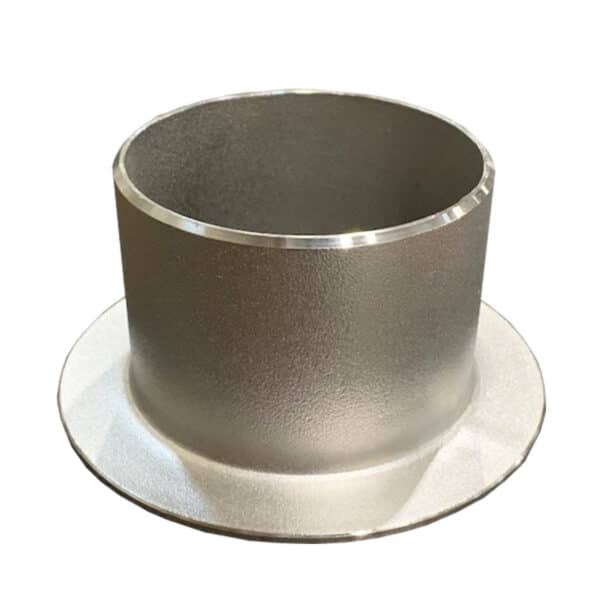

These 304L stainless steel Stub Ends (SE Series) are made to meet the product specification for Lap Joint Type C MSS SP–43 Schedule 10S. Stub ends in different materials, schedules and types are available upon request.
Downloads:

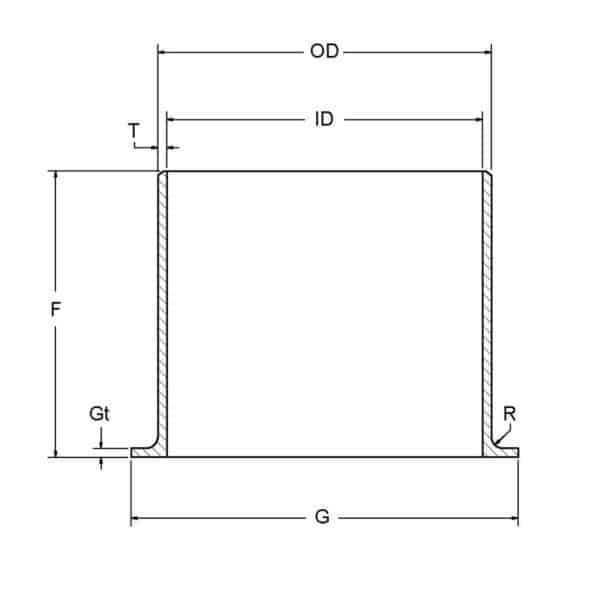

| Part Number | Size | Outside Diameter (O.D.) | Inside Diameter (I.D.) | Wall thickness (T) | Diameter (G) | Thickness (Gt) | Length (F) | Radius (R) |
| SE0100-C-10S-304L | 1 | 1.315 | 1.097 | 0.109 | 2.000 | 0.109 | 2 | 0.059 – 0.157 |
| SE0150-C-10S-304L | 1.5 | 1.902 | 1.683 | 0.109 | 2.874 | 0.109 | 2 | 0.059 – 0.157 |
| SE0200-C-10S-304L | 2 | 2.374 | 2.156 | 0.109 | 3.636 | 0.109 | 2.5 | 0.059 – 0.157 |
| SE0250-C-10S-304L | 2.5 | 2.874 | 2.634 | 0.120 | 4.106 | 0.120 | 2.5 | 0.059 – 0.157 |
| SE0300-C-10S-304L | 3 | 3.500 | 3.260 | 0.122 | 5.000 | 0.122 | 2.5 | 0.059 – 0.157 |
| SE0400-C-10S-304L | 4 | 4.500 | 4.260 | 0.120 | 6.189 | 0.120 | 3 | 0.059 – 0.157 |
| SE0500-C-10S-304L | 5 | 5.563 | 5.295 | 0.134 | 7.315 | 0.134 | 3 | 0.079 – 0.197 |
| SE0600-C-10S-304L | 6 | 6.626 | 6.358 | 0.134 | 8.500 | 0.134 | 3.5 | 0.079 – 0.197 |
| SE0800-C-10S-304L | 8 | 8.626 | 8.330 | 0.148 | 10.626 | 0.148 | 4 | 0.079 – 0.197 |
| SE1000-C-10S-304L | 10 | 10.752 | 10.422 | 0.165 | 12.752 | 0.165 | 5 | 0.079 – 0.197 |
| SE01200-C-10S-304L | 12 | 12.752 | 12.392 | 0.180 | 15.000 | 0.180 | 6 | 0.079 – 0.197 |
| Part Number Section | Options |
|---|---|
| Category | SE = Stub End |
| Size | XXXX = Size in inches going out 2 decimal places |
| Type | C = Type C |
| Schedule | 10S = Schedule 10 |
| Material | 304L = 304L Stainless Steel |
| Example | SE0100-C-10S-304L = 1″ Stub End, Type C, Schedule 10, 304L Stainless Steel |
