Plate Flanges

At API, we offer carbon steel and stainless steel plate flanges in a variety of sizes, thicknesses, and standards, ready to meet your project need.

General Service Flanges

Plate Flanges:
What Are They?

Plate flanges are made by cutting from a flat steel plate, usually carbon steel or stainless steel. After that, they are machined to precise dimensions, including the bolt holes and the center bore. Unlike forged flanges, which are shaped under high pressure, these flanges begin simply as a flat piece of metal.

Because they aren’t forged, plate flanges are simpler and more economical to produce. They are typically welded directly to a pipe, which is why they’re often called welded plate flanges. This makes them especially well-suited for lower-pressure applications where extreme strength isn’t required.

Common uses include low-pressure piping systems, water and gas pipelines, and a range of general industrial applications.

stainless steel 4020 flange butterfly valve adapter

Learn more about the products we offer!

Plate Flange Standards

AWWA flanges, defined under the AWWA C207 and C228 standards, are widely used for low-pressure waterworks systems. They are typically manufactured from carbon steel or stainless steel, providing solid strength and resistance to corrosion. Available in a range of thicknesses to match various pipe and pressure needs.
DIN flanges are offered in standard pressure ratings like PN10, PN16, and PN25, each engineered to meet specific performance and dimensional guidelines set by the Deutsches Institut für Normung (DIN). These flanges come in different thicknesses to suit system demands and can be customized for nonstandard layouts or special materials.

Comparison with Other Flanges

Flange TypeMade FromStrengthReletive CostCommon Use
Plate FlangeFlat metal plateModerateLowLow-pressure systems
Forged FlangeForged steelHighHigherHigh-pressure systems
Slip-On FlangeForged or plateModerateModerateGeneral piping systems

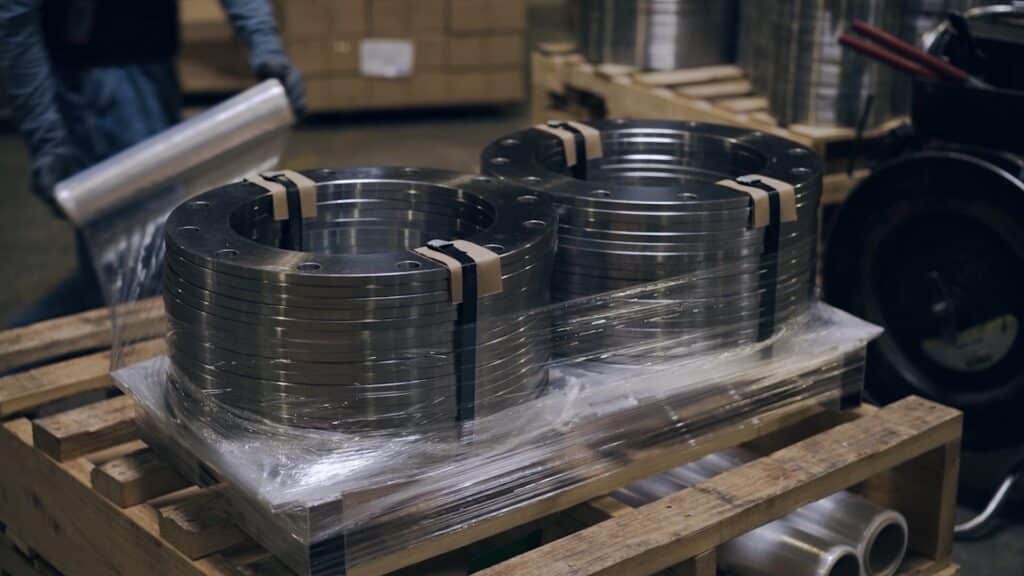

Shipping lightweight flanges

Applications of
Plate Flanges

Ideal where extreme strength and high-pressure ratings are not required.
Used for water supply, irrigation, and treatment systems.
Suitable for distributing natural gas and low-pressure industrial gas.
Common in HVAC, industrial vents, and exhaust stacks.
For general industrial setups where cost savings matter.

Plate Flange Categories

Miscellaneous flanges stand out for their adaptability. They cover a wide range of plate-style designs used for everyday pipe connections and unique custom projects.

Exhaust flanges are flat metal connectors used to join sections of an exhaust system. They create a tight seal between components, which allows exhaust gases to flow safely through the system.

Lightweight flanges are specialized pipe flanges which were engineered for low-pressure systems where the use of full-weight, pressure-rated fittings is unnecessary.

Frequently Asked
Questions

A plate flange is a flat, circular metal component which made from carbon steel, stainless steel, or alloy steel. They are used to connect pipes, valves, pumps, or other equipment in a piping system.

A plate flange is cut from a flat metal plate and then machined, while a forged flange is shaped under high pressure to improve strength. Plate flanges are generally for lower-pressure systems.

In water pipelines, irrigation systems, low-pressure gas lines, and various industrial applications where cost savings and simplicity are key.

They’re generally not used in high-pressure or critical service lines where forged or weld neck flanges are required.

Related Products

Custom Solutions

Capabilities:
• Custom Bolt Holes, Overbore, Counterbore, Tapped, Welds, O-ring Grooves, Threads, Special Serrations, Bevels, Chamfers

Thread Style:
• Metric Parallel, Metric Tapered, Parallel (BSPP), Taper Thread (BSPT), UN/UNF/UNC Thread,
NPT (National Pipe Thread)

Serrations:
• MWD

Tolerances:
• Contact API’s engineering department for exact specifications and tolerances.

Plastic: Delrin, POM, Lexan, Nylon 66, Nylon 6, PEEK, PP, PE, Acetal

Rubber: EPDM, Neoprene, Buna-N, Viton

Aluminum: A2011, A2024, A2017, A5052, A5056, A6061, A6063, A6463, A6082, A7075

Copper: 3600, 3604, 3771

Titanium: 1-28

Steel Series:
• Ductile Iron: ASTM A536
• Carbon/Mild Steel: A105, A36, A516-70, A572-50, etc.
• Stainless Steel:
 - 300 Series – 303, 304, 304L, 316, 316L
 - 400 Series – 420J2, 430, 434, 442

Special Metals: Hastelloy, Inconel, Incoloy, Duplex 2205, Super Duplex 2507, Chrome Steel, alloys, or their equivalents

Stock Finish, Spiral Serrated (Phonographic), Concentric Serrated, Smooth Finish, Cold Water Finish, MWD, Phonographic

Dipped, Nickel Plating, Zinc Plating (clear, yellow, black, red, blue), Super Agitine, Powder, Painted, Galvanized, Epoxy, Lacquer

Water/Wastewater, Irrigation, Agriculture, HVAC, Marine, Exhaust, Mining, Energy/Power Generation/Oil

Forming:
Forged:
 - Ring Rolling:
  • Materials: Carbon Steel, Stainless Steel, Duplex
  • Size: 2–202”

Cast:
 - Centrifugal Casting (Industrial):
  • Material: Stainless Steel
 - Continuous Casting:
  • Material: Stainless Steel
 - Sand Casting:
  • Material: A536, Stainless Steel, Ductile Iron

Machining: Milling, Turning, Facing, Boring, Drilling, Tapping, Counter Sinking, Laser Cutting, Water Jet, Plasma Cutting

ProductsTypeMaterialsSize Range
FlangesFlat-Face, Raised-Face, & Plate: Slip-On/Ring Weld, Neck, Blind, Socket Weld, Orifice, Reducing, ThreadedSee Materials List5–202″
GasketsMolded, Extruded, sheetEPDM, Buna-N, NBR, Non-Asbestos (GNA), Red Rubber (GRR), Viton5–60″
Screens For FiltersBasket Screens and Cone Screens (Perforated, Mesh)Galv. Carbon Steel, Carbon Steel, Stainless Steel6”D x 8’-H
RingsExhaust Rings (Marmon Flanges for DPF Filters)Carbon Steel, Stainless Steel, Aluminum1–16”
Seamless Rolled RingsForgedCarbon Steel, Stainless Steel, Aluminum1–165”
Square Hole RingsRepair CouplersCarbon Steel, Stainless Steel, Galvanized, Epoxy Coated3–32”
Fabricated AssembliesWeldments, Pipe Spools, Valve Bodies, Silencer HousingsCarbon Steel, Stainless Steel2–24”
Long/Short Radius ElbowsEN 10253-2–S235, P235GH–P265GH–P265NL and ASTM A234, WPB, WPC/ A420 WPL6, WPL3/ A860 WPHY52/ ASTM A234 WP11, WP22, WP5, WP9–16Mo3304L & 316L Stainless Steel(45° & 90°): OD: 21.3mm (1/2”)–3048mm (120”) WT: Up to SCH. XXS/160
MiscellaneousTubesheets / Diffuser Plates / Baffles / Ferrules / Sleeves / PinsCarbon Steel, Stainless Steel, Duplex5–104”

Why Choose Us?

Who we are

API International is a manufacturer and wholesale distributor of flanges, expansion joints, valves, other pipe fittings and custom fabricated parts. We offer a wide variety of AIS & imported flanges along with other industrial pipe fitting and accessories. Customers turn to us when they need quick delivery of parts and are looking for a higher level of customer service. Standard parts are stocked in one of our conveniently located warehouses for quick distribution throughout the United States.
