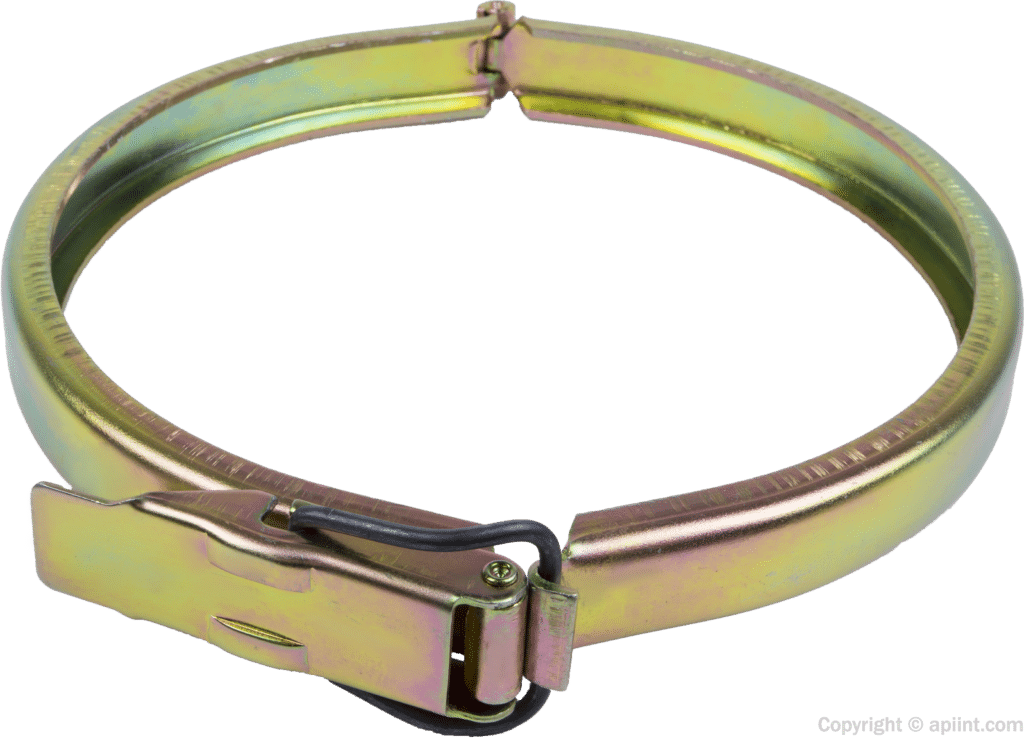

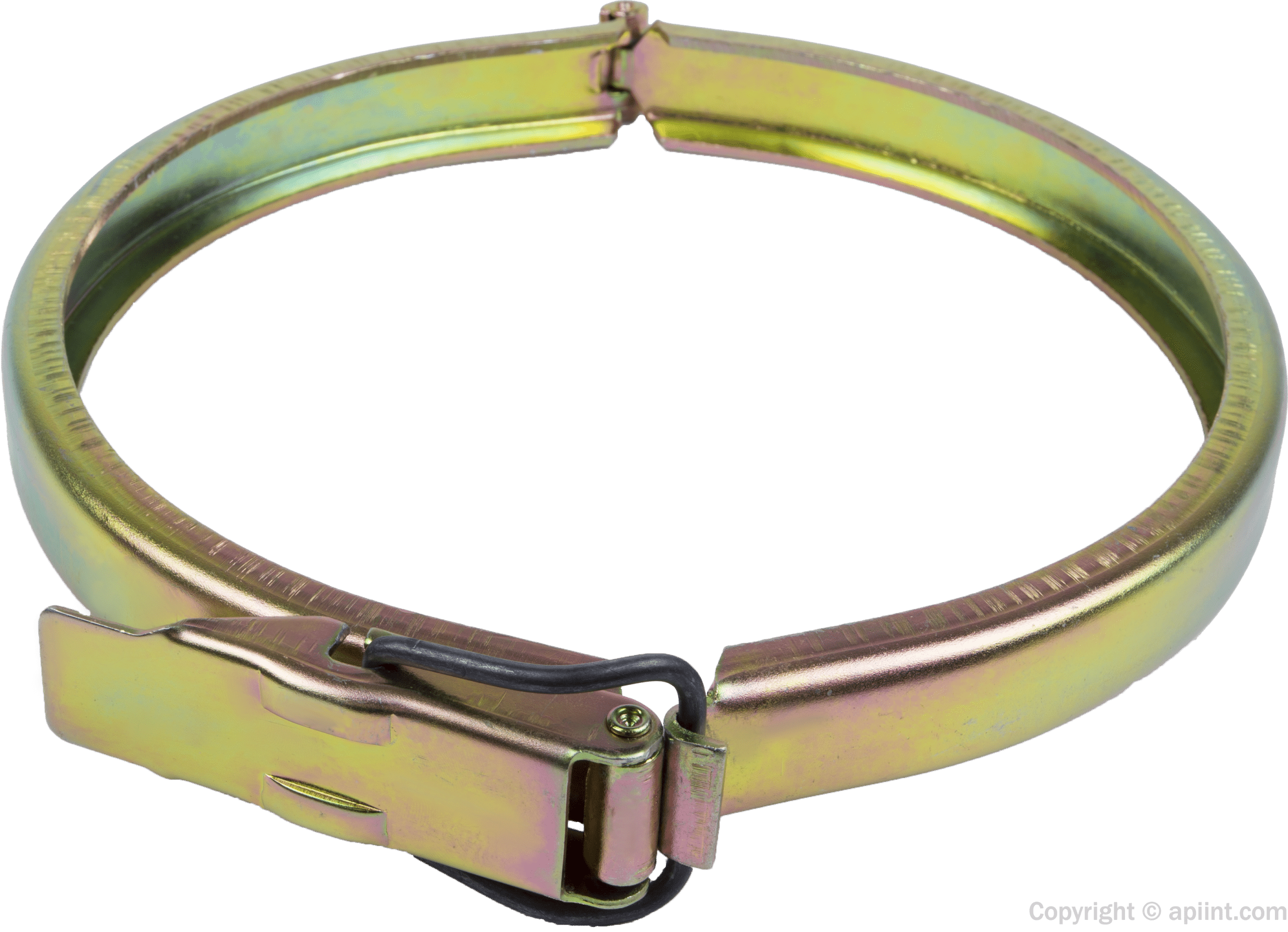

Ringlock Clamps are used to connect aluminum (or sometimes steel) ringlock/circle lock type fittings. To be used with fittings and couplers. These Ringlocks are available at discount prices!
Downloads:

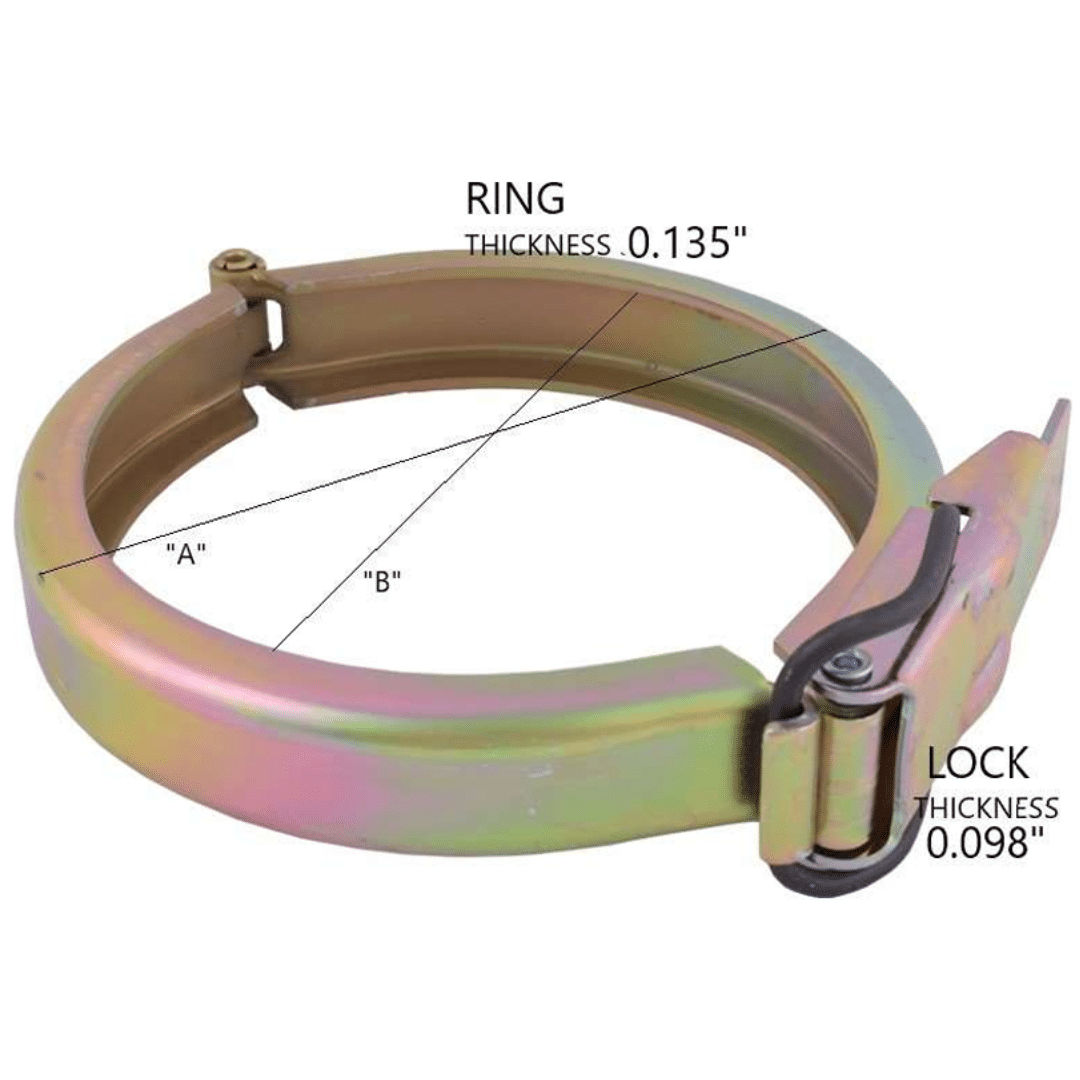

| API Part Number | Nominal Size | DIM “A” (+/- .060) | DIM “B” (+/- .060) | Ring Width (+/- .060) | Ring Thickness | Lock Thickness |
| RLC0400 | 4 | 5.37 | 4.35 | 1.375 | 0.135 | 0.098 |
| RLC0500 | 5 | 6.32 | 5.30 | 1.375 | 0.135 | 0.098 |
| RLC0600 | 6 | 7.38 | 6.35 | 1.375 | 0.135 | 0.098 |
| RLC1000 | 10 | 11.40 | 10.37 | 1.375 | 0.135 | 0.098 |
