Stainless Steel Pipe Adapter Nipples
KLAMPz K58 Pipe Adapter Nipples Reference Drawing
Stainless Steel Pipe Adapter Nipples
KLAMPz K58 Pipe Adapter Nipples Reference Drawing

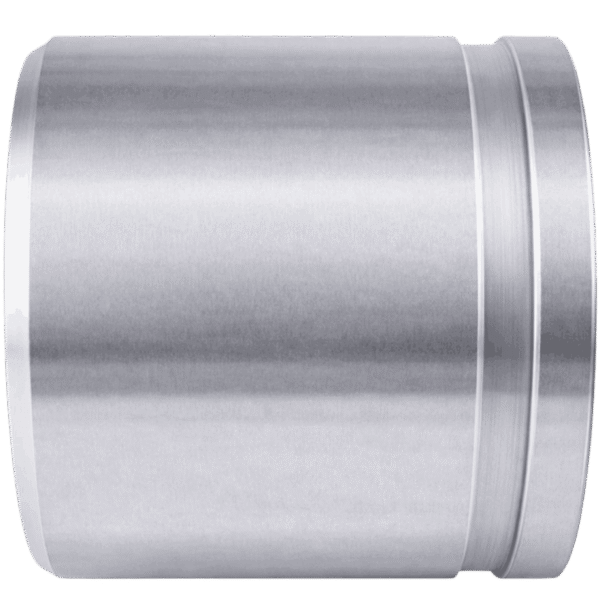

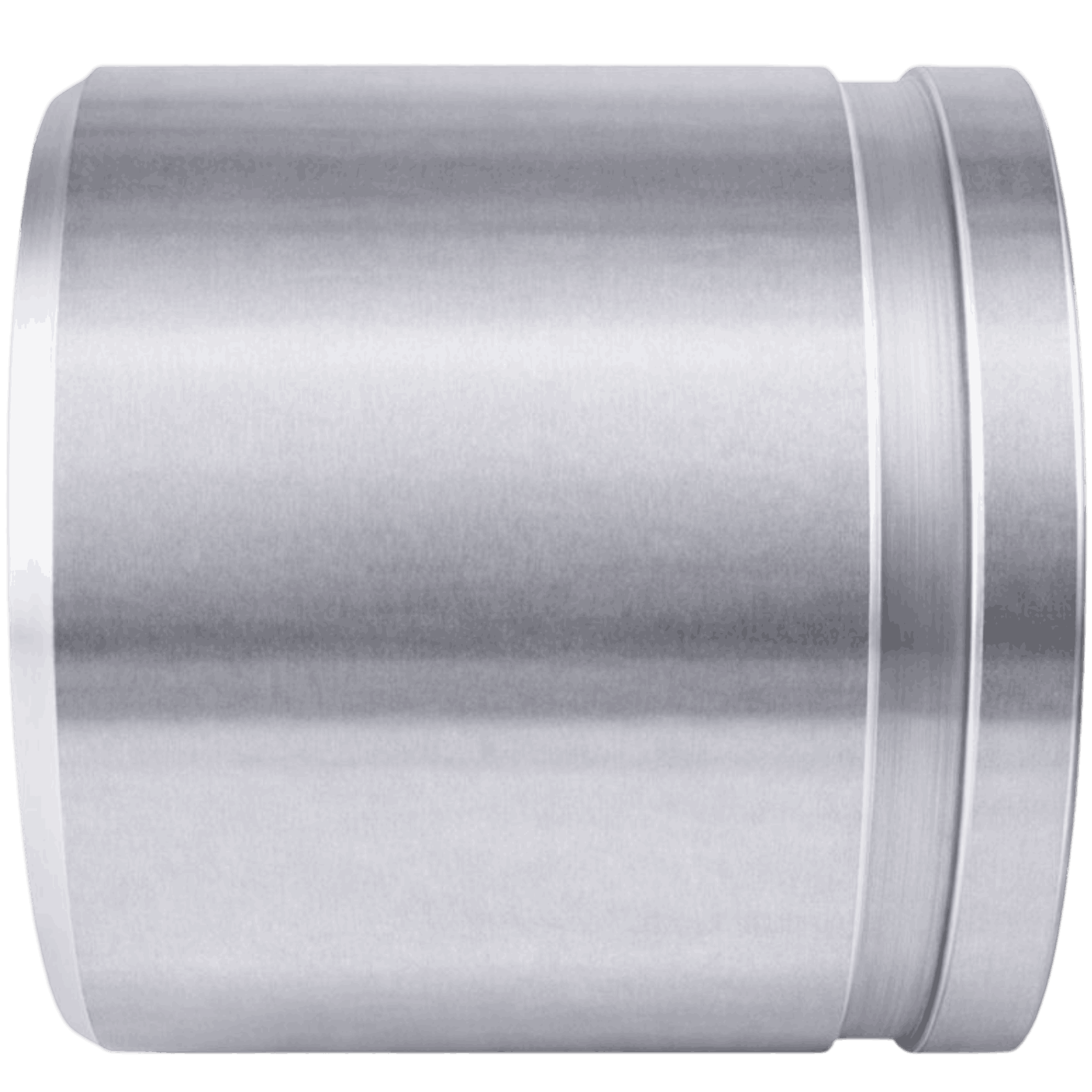

KLAMPz SK58 Stainless Steel Pipe Adapter Nipples

SKU: SK58 Category:

KLAMPz SK58 Adapter Nipples meet American Water Works Association (AWWA) and ANSI C606 specifications, stainless steel class follows ASME B36.19, and the stainless steel pipe material meets ASTM A312 (304, 304L, 316, 316L) Schedule 40 standards. Find the nominal pipe size, range of groove diameters, and wall thicknesses to suit your application needs.

Downloads:

KLAMPz Grooved Piping System Spec Sheet
Add to Quote

Product Details

Dimensions: KLAMPz SK58 Stainless Steel Pipe Adapter Nipples

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
Part Number Nominal Pipe Size Inches (NPS) Outside Diameter (OD) Inches Wall Thickness Inches Groove Diameter Inches “A” (+/-0.03) Inches “B” (+/-0.03) Inches End-to-End Length Inches (E to E)
SK580150-(X).0-(XX)(L) 1.5 1.190 0.145 1.775 (-0.015) 0.625 0.312 2, 3 or 4
SK580200-(X).0-(XX)(L) 2 2.375 0.154 2.250 (-0.15) 0.625 0.312 2, 3 or 4
SK580250-(X).0-(XX)(L) 2.5 2.875 0.203 2.720 (-0.018) 0.625 0.312 2, 3 or 4
SK580300-(X).0-(XX)(L) 3 3.500 0.216 3.344 (-0.018) 0.625 0.312 2, 3 or 4
SK580400-(X).0-(XX)(L) 4 4.500 0.237 4.334 (-0.020) 0.625 0.375 2, 3 or 4
SK580500-(X).0-(XX)(L) 5 5.563 0.258 5.395 (-0.022) 0.625 0.375 2, 3 or 4
SK580600-(X).0-(XX)(L) 6 6.625 0.280 6.455 (-0.022) 0.625 0.375 2, 3 or 4
SK580800-(X).0-(XX)(L) 8 8.625 0.322 8.441 (-0.025) 0.750 0.438 2, 3 or 4
SK581000-(X).0-(XX)(L) 10 10.750 0.365 10.562 (-0.027) 0.750 0.500 2, 3 or 4
SK581200-(X).0-(XX)(L) 12 12.750 0.375 12.531 (-0.030) 0.750 0.500 2, 3 or 4
SK581400-(X).0-(XX)(L) 14 14.000 0.375 13.781 (-0.030) 0.938 0.500 2, 3 or 4
  Notes:
  • Part number:
    • “X” is dependent on “E to E” Length. Example:  SK580200-3.0 (3″ E-to-E) or SK580800-4.0 (4″ E-to-E)
    • “XX” is dependent on pipe material. Example:  SK580200-3.0-4 (for 304) or SK580800-5.0-16L (for 316L)
  • Pipe nipples are cut-grooved per ANSI/AWWA C606.
  • Stainless steel class follows ASME B36.19.
  • Pressure ratings are dependent upon the coupling selected.
  • Nipples are manufactured from stainless steel pipe to ASTM A312 304, 304L, 316, 316L, Gr.B, Sch.40
  • Other sizes and lengths available upon request.
  • For Carbon/Mild Steel variants (ANSI/AWWA C606-06 ASTM A53 Gr.B, Sch.40), see: KLAMPz K58 Pipe Adapter Nipples
