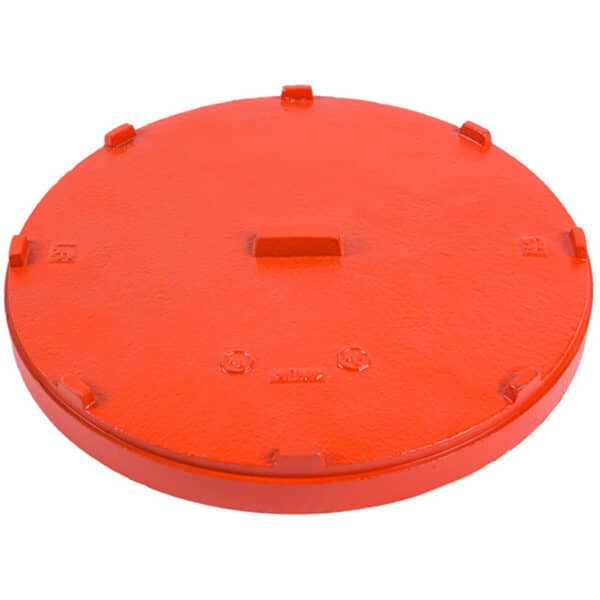

KLAMPz K60 Grooved Cap

Our KLAMPz K60 Grooved Caps are manufactured of cast ductile iron in dimensions that meet ANSI and American Water Works Association (AWWA) C606-06 specifications and have a maximum working pressure rating of 500psi. The standard coating is paint, but you can choose from other coating options, including epoxy, dacromet, or hot-dip galvanized coating.

Downloads:

Product Details

Related Products

Dimensions

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

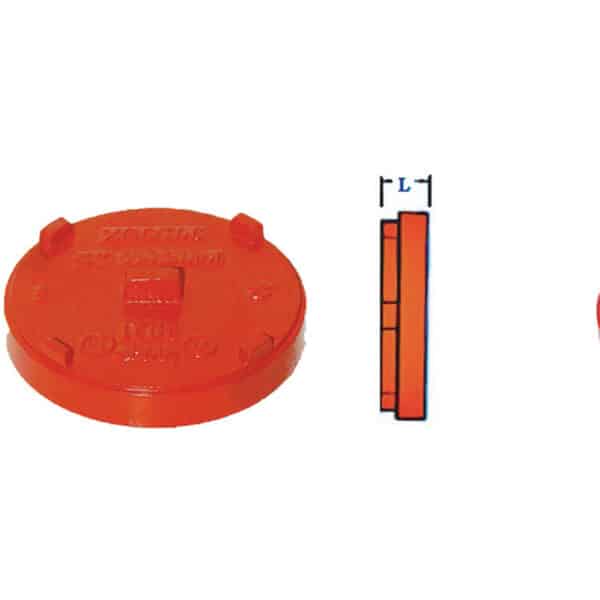

Nominal Size Inches Pipe OD Inches Dimension “L” Inches UL / FM Pressure Maximum Working Pressure
1 1.315 0.94 300 psi 500 psi
1.25 1.660 0.94 300 psi 500 psi
1.5 1.900 0.94 300 psi 500 psi
2 2.375 0.94 300 psi 500 psi
2.5 2.875 0.94 300 psi 500 psi
3 3.500 0.94 300 psi 500 psi
4 4.500 1.00 300 psi 500 psi
5 5.563 1.00 300 psi 500 psi
6 6.625 1.00 300 psi 500 psi
8 8.625 1.26 300 psi 500 psi
10 10.750 1.26 300 psi 500 psi
12 12.750 1.26 300 psi 500 psi
  Notes:
  • Model K60  are cast ductile iron conforming to ASTM A536, Gr. 65.45.12.
  • Dimensions adhere to ANSI/AWWA C606-06.
  • Coating options: Epoxy, Paint, Dacromet, Hot-Dip Galvanized.
  • UL-Listed & FM-Approved
