Zinc Plated Steel Class 150 Split Retaining Rings

SKU: RR Categories: Rubber Expansion Joints & Accessories, Expansion Joints

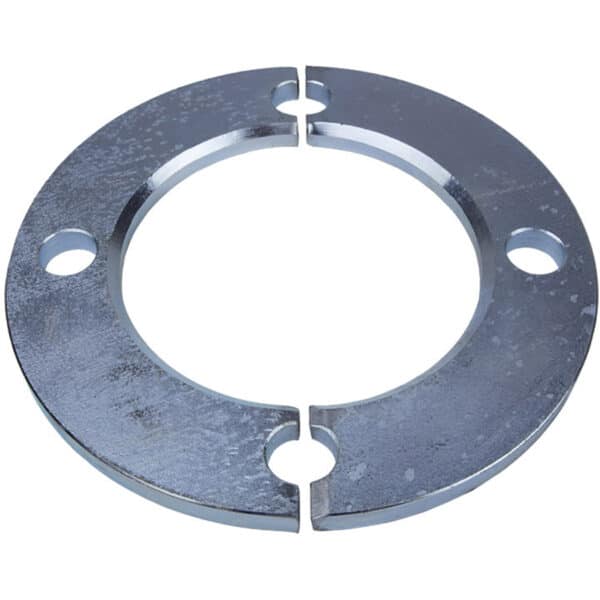

These Silver Zinc Plated Steel Split Retaining Rings (RR Series) are manufactured to ANSI Class #150 specifications, and are available drilled to Navy or DIN specifications, upon request. One set consists of four split ring halves up to 28″, then eight split ring quarters for 30″ and above.

Downloads:

Size

Drilling Pattern

Amount

Clear

Add to Quote

Product Details

Dimensions

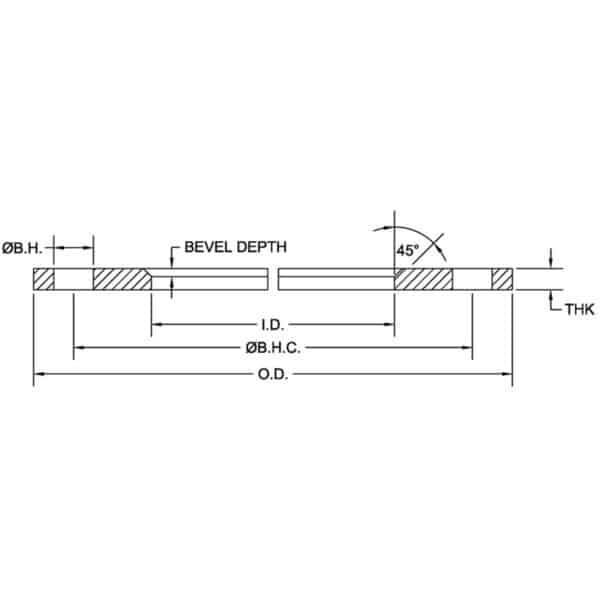

Dimensions: Zinc Plated Steel Class 150 Split Retaining Rings

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

API Part Number	Size	O.D.	I.D.	Ø B.H.C.	Ø B.H.	# B.H.	THK	Set Weight Lbs.
RR0050-S	0.5	3.50	1.50	2.38	0.63	4	0.375	1.70
RR0075-S	0.75	3.88	1.88	2.75	0.63	4	0.375	2.01
RR0100-S	1	4.25	2.38	3.13	0.63	4	0.375	2.19
RR0125-S	1.25	4.63	2.63	3.50	0.63	4	0.375	2.62
RR0150-S	1.5	5.00	2.88	3.88	0.63	4	0.375	3.06
RR0200-S	2	6.00	3.63	4.75	0.75	4	0.375	4.17
RR0250-S	2.5	7.00	4.13	5.50	0.75	4	0.375	6.01
RR0300-S	3	7.50	4.63	6.00	0.75	4	0.375	5.59
RR0400-S	4	9.00	5.88	7.50	0.75	8	0.375	8.49
RR0500-S	5	10.00	6.88	8.50	0.88	8	0.375	9.41
RR0600-S	6	11.00	7.88	9.50	0.88	8	0.375	10.67
RR0800-S	8	13.50	9.88	11.75	0.88	8	0.375	15.88
RR1000-S	10	16.00	12.13	14.25	1.00	12	0.375	19.62
RR1200-S	12	19.00	14.50	17.00	1.00	12	0.375	28.10
RR1400-S	14	21.00	16.50	18.75	1.13	12	0.375	31.07
RR1600-S	16	23.50	18.50	21.25	1.13	16	0.375	38.39
RR1800-S	18	25.00	20.50	22.75	1.25	16	0.375	36.40
RR2000-S	20	27.50	22.63	25.00	1.25	20	0.375	43.11
RR2200-S	22	29.50	24.63	27.25	1.38	20	0.375	45.67
RR2400-S	24	32.00	26.63	29.50	1.38	20	0.375	56.04
RR2600-S	26	34.25	28.88	31.75	1.38	24	0.375	59.40
RR2800-S	28	36.50	30.88	34.00	1.38	28	0.375	65.89
RR3000-S	30	38.75	32.88	36.00	1.38	28	0.375	74.35
RR3200-S	32	41.75	34.88	38.50	1.63	28	0.375	91.54
RR3400-S	34	43.75	37.00	40.50	1.630	32	.375	93.16
RR3600-S	36	46.00	39.00	42.75	1.63	32	0.375	103.27
RR4000-S	40	50.75	43.00	47.25	1.63	36	0.375	127.76
RR4200-S	42	53.00	45.25	49.50	1.63	36	0.375	134.83
RR4400-S	44	55.25	47.25	51.75	1.63	40	0.375	144.53
RR4800-S	48	59.50	51.25	56.00	1.63	44	0.375	161.35
RR5000-S	50	61.75	53.25	58.25	1.88	44	0.375	166.46
RR5200-S	52	64.00	55.25	60.50	1.88	44	0.375	179.81
RR5400-S	54	66.25	57.25	62.75	1.88	44	0.375	193.59
RR6000-S	60	73.00	63.25	69.25	1.88	52	0.375	231.80
RR6600-S	66	80.00	69.25	76.00	1.88	52	0.375	287.69
RR7200-S	72	86.50	75.25	82.50	2.00	60	0.375	319.90

Notes:

Rings are Steel & Silver Zinc Plated.
Navy or DIN drilling available on special order basis.
1 Set = 4 Split Ring Halves up to 28″, or 8 Split Ring Quarters for 30″ and above
