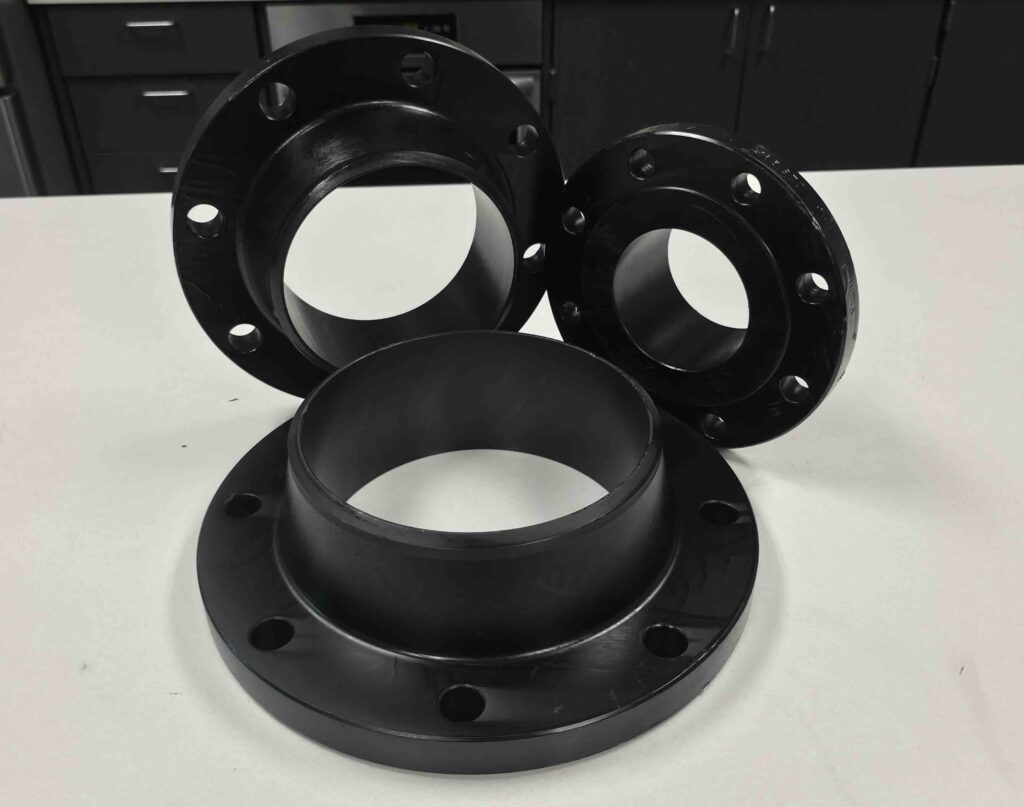

Painted flanges are standard steel flanges supplied with a uniform exterior coating applied for appearance and basic surface protection during storage, handling, and installation. The coating does not change dimensional tolerances, pressure class, or material properties. Pressure ratings, standards compliance, and performance are all determined by the base material and flange specification, not the finish. There is no industry standard that governs painted flanges specifically. Paint is a finish option, not a material upgrade.
Parts arrive with a clean, uniform finish across an entire order. No mismatched appearances between items or shipments.
Painted surfaces help reduce flash rust during short-term storage and jobsite staging. It is not a substitute for engineered corrosion protection.
Receiving flanges already finished eliminates extra handling or coordination after delivery. What shows up matches what was ordered.
Customers request painted flanges for practical reasons rather than performance ones. In most cases it comes down to consistency, readiness, and matching what is already in the field:
Since there is no governing standard for painted flanges, the specification is straightforward. When you order painted flanges from API International, here is what you can expect:
Paint is not a substitute for material selection, alloy upgrades, or engineered corrosion protection. If the service environment requires real corrosion resistance, the right answer is a material upgrade such as stainless steel or a specified coating, like electroless nickel plating, not paint.
Slides over the pipe and is welded at both the inner and outer diameters. Easier to install and align than weld neck, but suited for moderate pressure systems.
Solid flange with no bore, used to seal the end of a pipe system or pressure vessel. Allows easy access for inspection or future expansion.
Designed with a long tapered hub that is welded to the pipe, providing excellent strength and stress distribution. Ideal for high-pressure and high-temperature applications.
Has a socket to insert the pipe before welding. Provides good flow characteristics and is used in small-bore, high-pressure lines.
Used with a stub end fitting. The flange itself does not touch the process fluid and can rotate around the pipe, making alignment and assembly easier.
No. Paint is an exterior finish only. It does not affect dimensional tolerances, pressure class, material properties, or standards compliance.
There is no specific industry standard governing painted flanges. Paint is a finish option, typically applied for appearance and basic surface protection.
Paint provides basic surface protection against flash rust during storage and handling. It is not an engineered corrosion protection solution. For applications where corrosion resistance is a requirement, material selection or a specified coating, such as electroless nickel, is the appropriate choice.
Contact our sales team with your required pipe size, pressure class, flange type, and material. Let us know you need a painted finish and we will coordinate it as part of your order.
• Custom Bolt Holes, Overbore, Counterbore, Tapped, Welds, O-ring Grooves, Threads, Special Serrations, Bevels, Chamfers
• Metric Parallel, Metric Tapered, Parallel (BSPP), Taper Thread (BSPT), UN/UNF/UNC Thread, NPT (National Pipe Thread)
• MWD
• Contact API’s engineering department for exact specifications and tolerances.
Plastic: Delrin, POM, Lexan, Nylon 66, Nylon 6, PEEK, PP, PE, Acetal
Rubber: EPDM, Neoprene, Buna-N, Viton
Aluminum: A2011, A2024, A2017, A5052, A5056, A6061, A6063, A6463, A6082, A7075
Copper: 3600, 3604, 3771
Titanium: 1-28
Steel Series:
• Ductile Iron: ASTM A536
• Carbon/Mild Steel: A105, A36, A516-70, A572-50, etc.
• Stainless Steel:
- 300 Series – 303, 304, 304L, 316, 316L
- 400 Series – 420J2, 430, 434, 442
Special Metals: Hastelloy, Inconel, Incoloy, Duplex 2205, Super Duplex 2507, Chrome Steel, alloys, or their equivalents
Stock Finish, Spiral Serrated (Phonographic), Concentric Serrated, Smooth Finish, Cold Water Finish, MWD, Phonographic
Dipped, Nickel Plating, Zinc Plating (clear, yellow, black, red, blue), Super Agitine, Powder, Painted, Galvanized, Epoxy, Lacquer
Water/Wastewater, Irrigation, Agriculture, HVAC, Marine, Exhaust, Mining, Energy/Power Generation/Oil
• Forged:
- Ring Rolling:
• Materials: Carbon Steel, Stainless Steel, Duplex
• Size: 2–202”
• Cast:
- Centrifugal Casting (Industrial):
• Material: Stainless Steel
- Continuous Casting:
• Material: Stainless Steel
- Sand Casting:
• Material: A536, Stainless Steel, Ductile Iron
- Investment/Lost-Wax/Precision Casting
• Material: Stainless Steel
Machining: Milling, Turning, Facing, Boring, Drilling, Tapping, Counter Sinking, Laser Cutting, Water Jet, Plasma Cutting
| Products | Type | Materials | Size Range |
|---|---|---|---|
| Flanges | Flat-Face, Raised-Face, & Plate: Slip-On/Ring Weld, Neck, Blind, Socket Weld, Orifice, Reducing, Threaded | See Materials List | 5–202″ |
| Gaskets | Molded, Extruded, sheet | EPDM, Buna-N, NBR, Non-Asbestos (GNA), Red Rubber (GRR), Viton | 5–60″ |
| Screens For Filters | Basket Screens and Cone Screens (Perforated, Mesh) | Galv. Carbon Steel, Carbon Steel, Stainless Steel | 6”D x 8’-H |
| Rings | Exhaust Rings (Marmon Flanges for DPF Filters) | Carbon Steel, Stainless Steel, Aluminum | 1–16” |
| Seamless Rolled Rings | Forged | Carbon Steel, Stainless Steel, Aluminum | 1–165” |
| Square Hole Rings | Repair Couplers | Carbon Steel, Stainless Steel, Galvanized, Epoxy Coated | 3–32” |
| Fabricated Assemblies | Weldments, Pipe Spools, Valve Bodies, Silencer Housings | Carbon Steel, Stainless Steel | 2–24” |
| Long/Short Radius Elbows | EN 10253-2–S235, P235GH–P265GH–P265NL and ASTM A234, WPB, WPC/ A420 WPL6, WPL3/ A860 WPHY52/ ASTM A234 WP11, WP22, WP5, WP9–16Mo3 | 304L & 316L Stainless Steel | (45° & 90°): OD: 21.3mm (1/2”)–3048mm (120”) WT: Up to SCH. XXS/160 |
| Miscellaneous | Tubesheets / Diffuser Plates / Baffles / Ferrules / Sleeves / Pins | Carbon Steel, Stainless Steel, Duplex | 5–104” |
