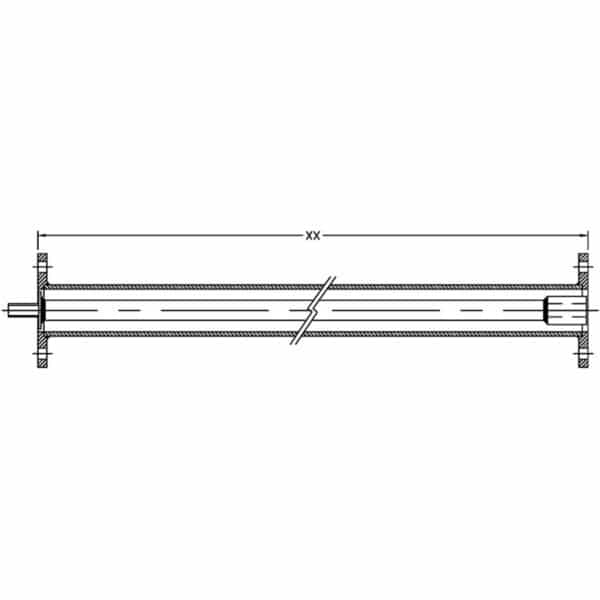

Valve Extensions for Butterfly Valve Drawing 2
Valve Extensions for Butterfly Valve Drawing
butterfly valve extension
Valve Extensions for Butterfly Valve Drawing 2
Valve Extensions for Butterfly Valve Drawing

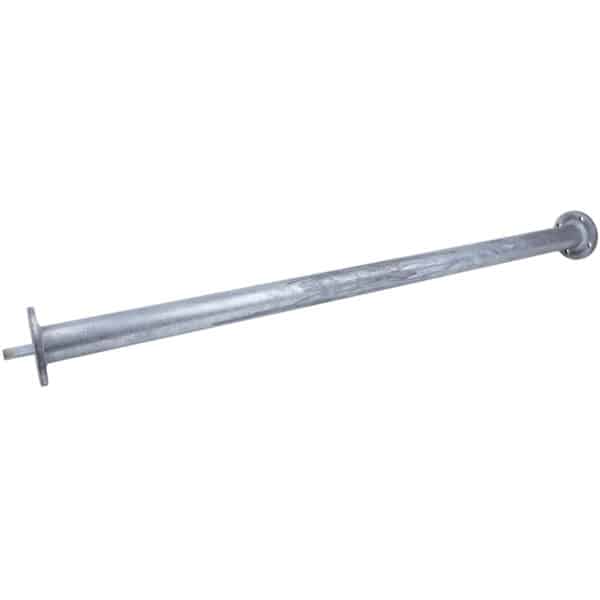

Valve Extensions for Butterfly Valves

SKU: VE Categories: ,

Valve Extensions for Butterfly Valves are designed to enable easier access to inaccessible valves. Available in a range of extension sizes and to suit a variety of housing part and bolt circle diameter specifications.

Downloads:

Valve Accessories Spec Sheet
Add to Quote

Product Details

Features

  • Valve Extensions for Butterfly Valves can be used for underground service or in riser systems to enable easier access for opening and shutting butterfly valves.
  • Galvanized steel for excellent corrosion resistance.
  • Valve extensions are for BVL and BVG product lines


Complete Set Information (VE)

COMPLETE SET PART# VALVE/EXTENSION SIZE EXTENSION SHAFT PART# EXTENSION HOUSING PART#
VE0400D-XX 4″ VEIS4D-XX VEHS-XX
VE0500D-XX 5″ VEIS56D-XX VEHS-XX
VE0600D-XX 6″ VEIS56D-XX VEHS-XX
VE0800D-XX 8″ VEIS8D-XX VEHL-XX
VE1000D-XX 10″ VEIS1012D-XX VEHL-XX
VE1200D-XX 12″ VEIS1012D-XX VEHL-XX
Note: “XX” = Length of Valve Extension (36”,48”, or 72”)

Shaft Information (VEIS)

HOUSING PART# SIZE DIAGONAL HEAD SIZE (E)
VEIS4D-XX 4″ .433”
VEIS56D-XX 5″ .551″
VEIS56D-XX 6″ .551″
VEIS8D-XX 8″ .669″
VEIS1012D-XX 10″ .866″
VEIS1012D-XX 12″ .866″


Housing Information (VEH)

HOUSING PART# SIZE BOLT CIRCLE DIAMETER (ØB)
VEHS-XX 4″ 2.76″
VEHS-XX 5″ 2.76″
VEHS-XX 6″ 2.76″
VEHL-XX 8″ 4.02″
VEHL-XX 10″ 4.02″
VEHL-XX 12″ 4.02″
