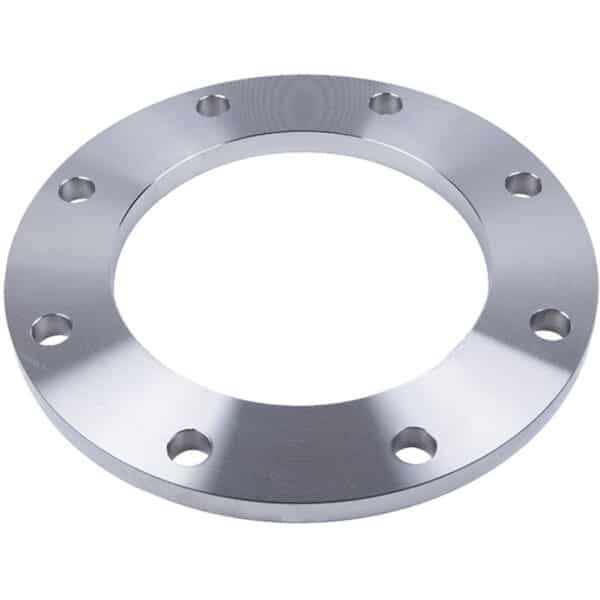

These 1/2-Inch Thick Stainless Steel Slip-On Flanges are available in Iron Pipe Size (IPS) and Outside Diameter (O.D.) tube sizes, and are manufactured in ASTM grades 304L and 316L. These slip-on flanges comply with ANSI #150 bolt pattern specifications.
Downloads:

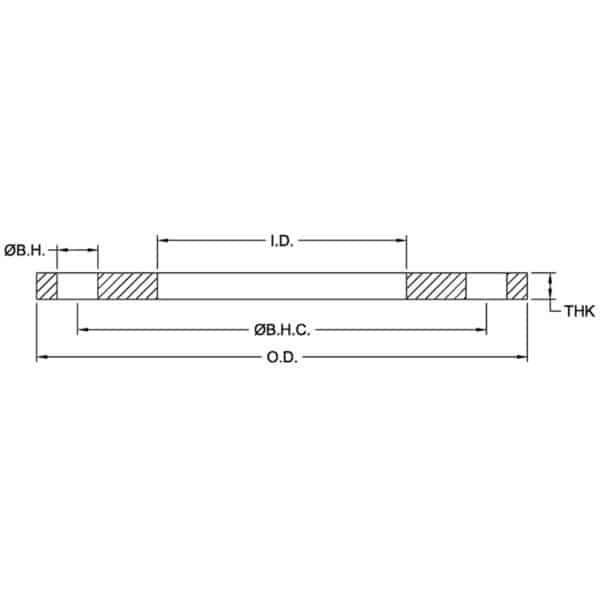

API Part Number | Size | O.D. | I.D. | Ø B.H.C. | Ø B.H. | # B.H. | THK | Weight Lbs |
SPFH0050 | 0.5 | 3.50 | 0.88 | 2.38 | 0.630 | 4 | 0.500 | 1.0 |
SPFH0075 | 0.75 | 3.88 | 1.09 | 2.75 | 0.630 | 4 | 0.500 | 1.3 |
SPFH0100 | 1 | 4.25 | 1.36 | 3.13 | 0.630 | 4 | 0.500 | 1.7 |
SPFH0125 | 1.25 | 4.63 | 1.70 | 3.50 | 0.630 | 4 | 0.500 | 2.3 |
SPFH0150 | 1.5 | 5.00 | 1.95 | 3.88 | 0.630 | 4 | 0.500 | 2.5 |
SPFH0200 | 2 | 6.00 | 2.44 | 4.75 | 0.750 | 4 | 0.500 | 3.0 |
SPFH0250 | 2.5 | 7.00 | 2.94 | 5.50 | 0.750 | 4 | 0.500 | 4.0 |
SPFH0300 | 3 | 7.50 | 3.57 | 6.00 | 0.750 | 4 | 0.500 | 4.7 |
SPFH0350 | 3.5 | 8.50 | 4.07 | 7.00 | 0.750 | 8 | 0.500 | 5.5 |
SPFH0400 | 4 | 9.00 | 4.57 | 7.50 | 0.750 | 8 | 0.500 | 6.4 |
SPFH0500 | 5 | 10.00 | 5.66 | 8.50 | 0.875 | 8 | 0.500 | 7.2 |
SPFH0600 | 6 | 11.00 | 6.72 | 9.50 | 0.875 | 8 | 0.500 | 8.4 |
SPFH0800 | 8 | 13.50 | 8.72 | 11.75 | 0.875 | 8 | 0.500 | 11.4 |
SPFH1000 | 10 | 16.00 | 10.88 | 14.25 | 1.000 | 12 | 0.500 | 14.6 |
SPFH1200 | 12 | 19.00 | 12.88 | 17.00 | 1.000 | 12 | 0.500 | 21.6 |
SPFH1400 | 14 | 21.00 | 14.19 | 18.75 | 1.125 | 12 | 0.500 | 26.5 |
SPFH1600 | 16 | 23.50 | 16.19 | 21.25 | 1.125 | 16 | 0.500 | 31.0 |
SPFH1800 | 18 | 25.00 | 18.19 | 22.75 | 1.250 | 16 | 0.500 | 32.0 |
SPFH2000 | 20 | 27.50 | 20.19 | 25.00 | 1.250 | 20 | 0.500 | 37.5 |
SPFH2200 | 22 | 29.50 | 22.19 | 27.25 | 1.375 | 20 | 0.500 | 38.5 |
SPFH2400 | 24 | 32.00 | 24.19 | 29.50 | 1.375 | 20 | 0.500 | 49.0 |
SPFH2600 | 26 | 34.25 | 26.19 | 31.75 | 1.375 | 24 | 0.500 | 52.0 |
SPFH2800 | 28 | 36.50 | 28.19 | 34.00 | 1.375 | 28 | 0.500 | 54.0 |
SPFH3000 | 30 | 38.75 | 30.19 | 36.00 | 1.375 | 28 | 0.500 | 65.0 |
SPFH3200 | 32 | 41.75 | 32.19 | 38.50 | 1.625 | 28 | 0.500 | 70.0 |
SPFH3400 | 34 | 43.75 | 34.19 | 40.50 | 1.625 | 32 | 0.500 | 74.0 |
SPFH3600 | 36 | 46.00 | 36.19 | 42.75 | 1.625 | 32 | 0.500 | 81.0 |
SPFH3800 | 38 | 48.75 | 38.19 | 45.25 | 1.625 | 32 | 0.500 | 93.0 |
SPFH4000 | 40 | 50.75 | 40.19 | 47.25 | 1.625 | 36 | 0.500 | 97.0 |
SPFH4200 | 42 | 53.00 | 42.19 | 49.50 | 1.625 | 36 | 0.500 | 104.0 |
SPFH4400 | 44 | 55.25 | 44.19 | 51.75 | 1.625 | 40 | 0.500 | 111.0 |
SPFH4600 | 46 | 57.25 | 46.19 | 53.75 | 1.625 | 40 | 0.500 | 118.0 |
SPFH4800 | 48 | 59.50 | 48.19 | 56.00 | 1.625 | 44 | 0.500 | 124.0 |
API Part Number | Size | O.D. | I.D. | Ø B.H.C. | Ø B.H. | # B.H. | THK | Weight Lbs |
SPFH0050-16 | 0.50 | 3.50 | 0.56 | 2.38 | 0.630 | 4 | 0.500 | 1.1 |
SPFH0075-16 | 0.75 | 3.88 | 0.81 | 2.75 | 0.630 | 4 | 0.500 | 1.5 |
SPFH0100-16 | 1.00 | 4.25 | 1.06 | 3.13 | 0.630 | 4 | 0.500 | 2.0 |
SPFH0125-16 | 1.25 | 4.63 | 1.31 | 3.50 | 0.630 | 4 | 0.500 | 2.6 |
SPFH0150-16 | 1.50 | 5.00 | 1.56 | 3.88 | 0.630 | 4 | 0.500 | 2.8 |
SPFH0200-16 | 2.00 | 6.00 | 2.06 | 4.75 | 0.750 | 4 | 0.500 | 3.5 |
SPFH0250-16 | 2.50 | 7.00 | 2.56 | 5.50 | 0.750 | 4 | 0.500 | 4.5 |
SPFH0300-16 | 3.00 | 7.50 | 3.06 | 6.00 | 0.750 | 4 | 0.500 | 5.3 |
SPFH0350-16 | 3.50 | 8.50 | 3.56 | 7.00 | 0.750 | 8 | 0.500 | 6.0 |
SPFH0400-16 | 4.00 | 9.00 | 4.06 | 7.50 | 0.750 | 8 | 0.500 | 6.9 |
SPFH0500-16 | 5.00 | 10.00 | 5.06 | 8.50 | 0.875 | 8 | 0.500 | 8.0 |
SPFH0600-16 | 6.00 | 11.00 | 6.09 | 9.50 | 0.875 | 8 | 0.500 | 9.0 |
SPFH0800-16 | 8.00 | 13.50 | 8.09 | 11.75 | 0.875 | 8 | 0.500 | 12.6 |
SPFH1000-16 | 10.00 | 16.00 | 10.12 | 14.25 | 1.000 | 12 | 0.500 | 16.3 |
SPFH1200-16 | 12.00 | 19.00 | 12.12 | 17.00 | 1.000 | 12 | 0.500 | 22.5 |
