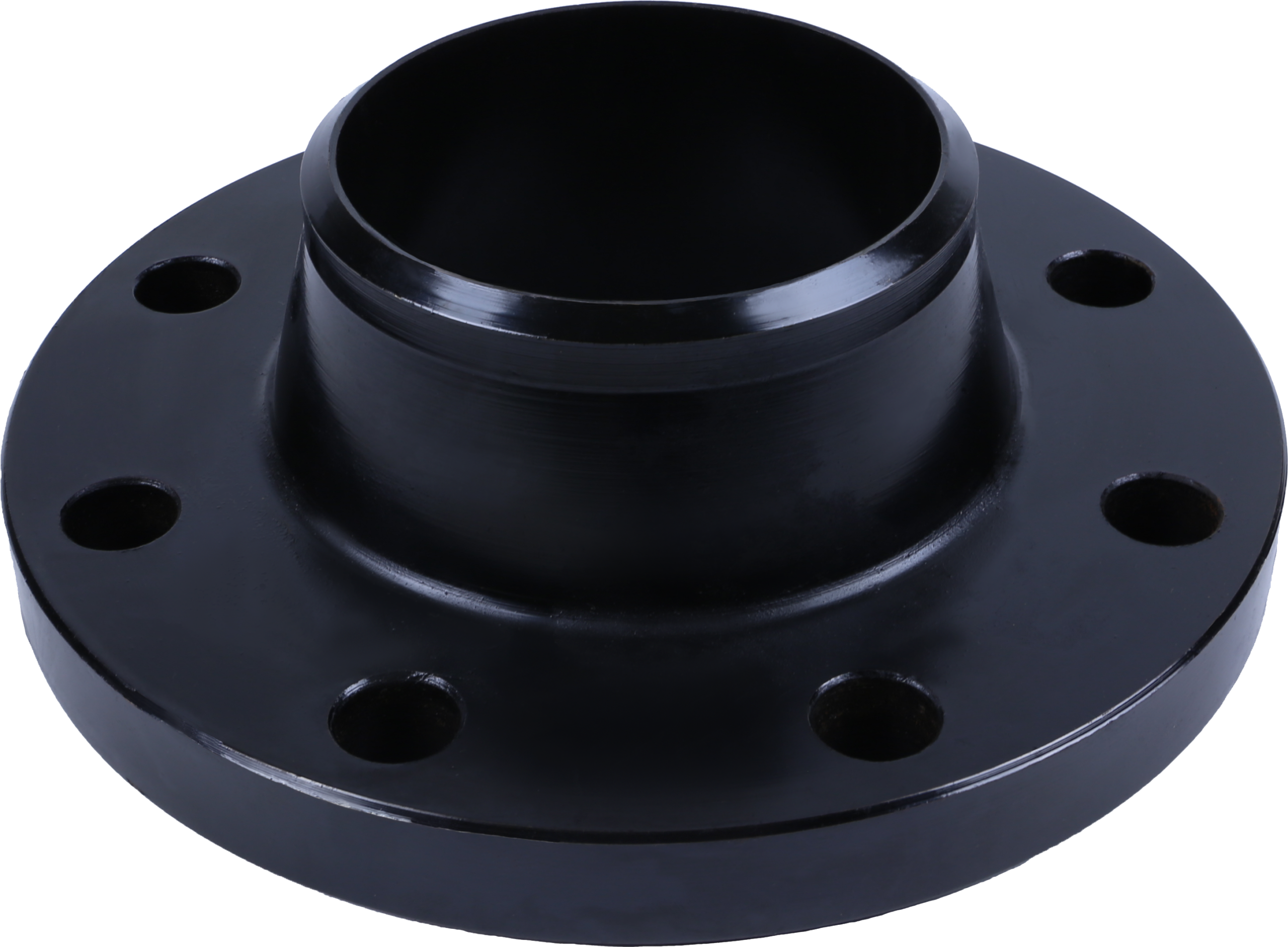

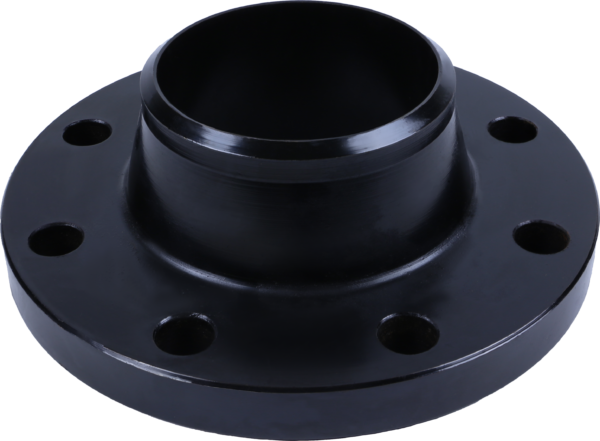

Our Class 150 Forged Steel Raised Face Weld-Neck Flanges are manufactured from ASTM A105 mild steel. Dimensions and tolerances meet ANSI/ASME B16.5 specifications and are painted black for corrosion resistance. We manufacture these flanges in domestic (AIS) and import options, and our machine shop can modify ANSI/ASME flanges to spec.
Please contact us for a quote.
Downloads:
| API Part Number | Size | O.D. | I.D. | Ø B.H.C. | Ø B.H. | # B.H. | THK 1 | THK 2 | Ø H.D. | Ø A (Weld Point) | Ø RF | RH (RAD) | Weight Lbs |
| RFWN0050-S40 | 0.5 | 3.50 | 0.62 | 2.38 | 0.63 | 4 | 0.44 | 1.81 | 1.19 | 0.84 | 1.38 | 0.188 | 1.1 |
| RFWN0075-S40 | 0.75 | 3.88 | 0.82 | 2.75 | 0.63 | 4 | 0.50 | 2.00 | 1.50 | 1.05 | 1.69 | 0.188 | 1.5 |
| RFWN0100-S40 | 1 | 4.25 | 1.05 | 3.13 | 0.63 | 4 | 0.56 | 2.12 | 1.32 | 1.32 | 2.00 | 0.188 | 2.2 |
| RFWN0125-S40 | 1.25 | 4.63 | 1.38 | 3.50 | 0.63 | 4 | 0.63 | 2.19 | 1.66 | 1.66 | 2.50 | 0.188 | 2.9 |
| RFWN0150-S40 | 1.5 | 5.00 | 1.61 | 3.88 | 0.63 | 4 | 0.69 | 2.38 | 1.90 | 1.90 | 2.88 | 0.188 | 3.7 |
| RFWN0200-S40 | 2 | 6.00 | 2.07 | 4.75 | 0.75 | 4 | 0.75 | 2.44 | 2.38 | 2.38 | 3.63 | 0.188 | 5.6 |
| RFWN0250-S40 | 2.5 | 7.00 | 2.47 | 5.50 | 0.75 | 4 | 0.88 | 2.69 | 2.88 | 2.88 | 4.13 | 0.188 | 8.9 |
| RFWN0300-S40 | 3 | 7.50 | 3.07 | 6.00 | 0.75 | 4 | 0.94 | 2.69 | 3.50 | 3.50 | 5.00 | 0.188 | 10.7 |
| RFWN0350-S40 | 3.5 | 8.50 | 3.55 | 7.00 | 0.75 | 8 | 0.94 | 2.75 | 4.00 | 4.00 | 5.50 | 0.188 | 13.2 |
| RFWN0400-S40 | 4 | 9.00 | 4.03 | 7.50 | 0.75 | 8 | 0.94 | 2.94 | 4.50 | 4.50 | 6.19 | 0.188 | 14.9 |
| RFWN0500-S40 | 5 | 10.00 | 5.05 | 8.50 | 0.88 | 8 | 0.94 | 3.44 | 5.56 | 5.56 | 7.31 | 0.188 | 18.5 |
| RFWN0600-S40 | 6 | 11.00 | 6.07 | 9.50 | 0.88 | 8 | 1.00 | 3.44 | 6.63 | 6.63 | 8.50 | 0.250 | 22.8 |
| RFWN0800-S40 | 8 | 13.50 | 7.98 | 11.75 | 0.88 | 8 | 1.13 | 3.94 | 8.63 | 8.63 | 10.63 | 0.250 | 37.5 |
| RFWN1000-S40 | 10 | 16.00 | 10.02 | 14.25 | 1.00 | 12 | 1.19 | 3.94 | 10.75 | 10.75 | 12.75 | 0.250 | 51.1 |
| RFWN1200-S40 | 12 | 19.00 | 11.94 | 17.00 | 1.00 | 12 | 1.25 | 4.44 | 12.75 | 12.75 | 15.00 | 0.313 | 78.9 |
| RFWN1400-S40 | 14 | 21.00 | 13.12 | 18.75 | 1.13 | 12 | 1.38 | 4.94 | 14.00 | 14.00 | 16.25 | 0.313 | 105.9 |
| RFWN1600-S40 | 16 | 23.50 | 15.00 | 21.25 | 1.13 | 16 | 1.44 | 4.94 | 16.00 | 16.00 | 18.50 | 0.313 | 134.8 |
| RFWN1800-S40 | 18 | 25.00 | 16.88 | 22.75 | 1.25 | 16 | 1.56 | 5.44 | 18.00 | 18.00 | 21.00 | 0.313 | 158.5 |
| RFWN2000-S40 | 20 | 27.50 | 18.81 | 25.00 | 1.25 | 20 | 1.69 | 5.62 | 20.00 | 20.00 | 23.00 | 0.313 | 196.9 |
| RFWN2200-STD | 22 | 29.50 | 21.25 | 27.25 | 1.38 | 20 | 1.75 | 5.82 | 24.00 | 22.00 | 25.25 | 0.313 | 202.0 |
| RFWN2400-S40 | 24 | 32.00 | 22.62 | 29.50 | 1.38 | 20 | 1.88 | 5.94 | 26.12 | 24.00 | 27.25 | 0.313 | 278.4 |
