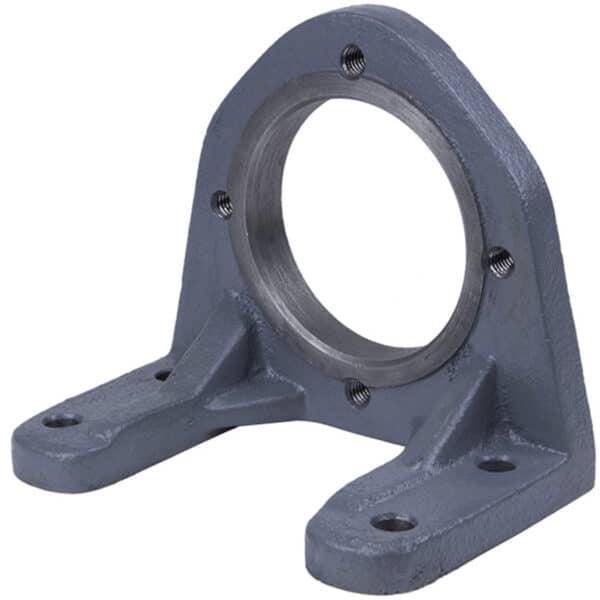

Complete your set-up with HB Series hydraulic motor pump mounting brackets in a range of sizes suitable for gear and piston pumps and motors. We carry light- to heavy-duty mounting bracket solutions for use with low to high-speed hydraulic motors.
Downloads:

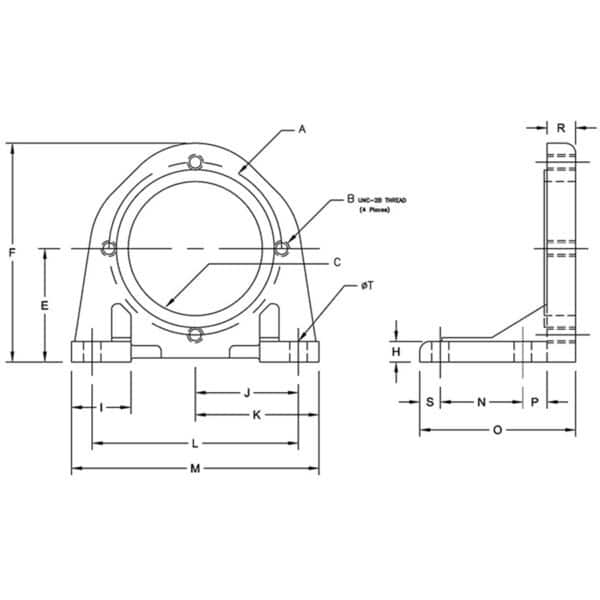

| Part # | A | B | C | E | F | H | I | J | K | L | M | N | O | P | R | S | T | Weight |
| HB-A | 4.19″ | 0.38-16 | 3.25″ | 2.75″ | 5.31″ | 0.50″ | 1.44″ | 2.50″ | 3.00″ | 5.00″ | 6.00″ | 2.00″ | 3.78″ | 0.59″ | 0.69″ | 0.50″ | 0.43″ | ~4 Lbs |
| HB-B | 5.75″ | 0.50-13 | 4.00″ | 3.63″ | 7.12″ | 0.50″ | 1.44″ | 2.88″ | 3.38″ | 5.75″ | 6.75″ | 2.00″ | 3.77″ | 0.59″ | 0.69″ | 0.50″ | 0.43″ | 5 Lbs |
| HB-C | 7.13″ | 0.62-11 | 5.00″ | 4.31″ | 8.50″ | 0.62″ | 2.00″ | 4.63″ | 5.22″ | 9.25″ | 10.44″ | 3.00″ | 5.18″ | 0.75″ | 0.75″ | 0.68″ | 0.69″ | 12 Lbs |
| Part | Material |
|---|---|
| Body | Cast Iron |
