KLAMPz K10 90-Degree Elbow Pipe Fittings

SKU: K10 Categories: KLAMPz Grooved Piping System, Fittings & Accessories

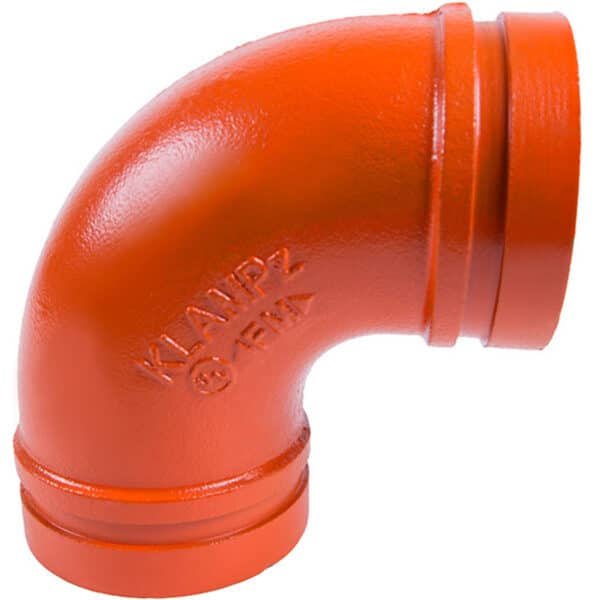

The K10 KLAMPz 90 degree elbows are manufactured of cast ductile iron with a variety of coating options, but the standard is a paint coating. These fittings conform to ASTM A536 specifications and dimensions meet American Water Works Association and ANSI C606-06 specifications and have a maximum working pressure rating of 500psi. UL/FM Approved versions available upon request.

Downloads:

Size

Clear

Product Details

Related Products

Dimensions

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

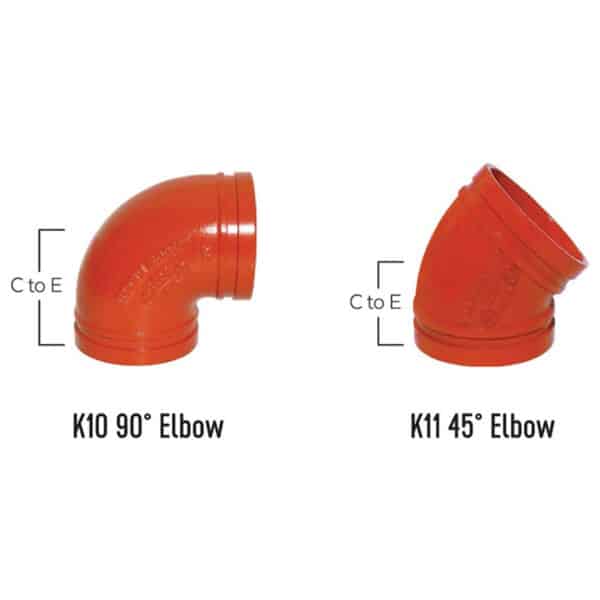

Nominal Size Inches	Pipe OD Inches	UL / FM Pressure	Maximum Working Pressure	“C To E” Dimensions
1.25	1.660	300 psi	500 psi	2.75
1.5	1.900	300 psi	500 psi	2.75
2	2.375	300 psi	500 psi	3.25
2.5	2.875	300 psi	500 psi	3.75
3	3.500	300 psi	500 psi	4.25
4	4.500	300 psi	500 psi	5.00
5	5.563	300 psi	500 psi	5.50
6	6.625	300 psi	500 psi	6.50
8	8.625	300 psi	500 psi	7.75
10	10.750	300 psi	500 psi	9.00
12	12.750	300 psi	500 psi	10.00

Notes:

Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron
Dimensions meet ANSI/AWWA C606-06
Center to End Dimensions are manufacture’s standard
Fittings larger than 14″ may be fabricated from steel pipe to ASTM A53, Gr. B or equivalent
Coating options: Epoxy, Paint, Dacromet, Hot-Dip Galvanized
UL-Listed & FM-Approved versions available upon request.
