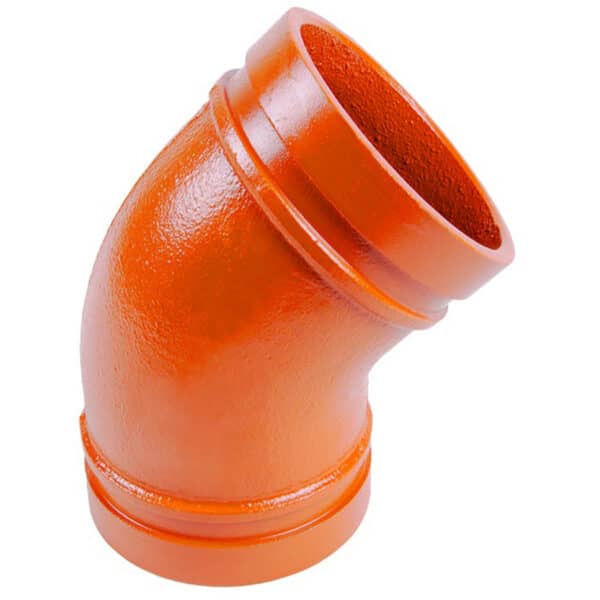

KLAMPz K11 45-Degree Elbow Pipe Fittings

Our KLAMPz 45 degree elbows are manufactured of cast ductile iron with a variety of coating options, but the standard is a paint coating. These fittings conform to ASTM A536 specifications and dimensions meet American Water Works Association and ANSI C606-06 specifications and have a maximum working pressure rating of 500psi. UL/FM Approved versions available upon request.

Downloads:

Product Details

Related Products

Dimensions

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
Nominal Size Inches Pipe OD Inches UL / FM Pressure Maximum Working Pressure “C To E” Dimensions
1.25 1.660 300 psi 500 psi 1.75
1.5 1.900 300 psi 500 psi 1.75
2 2.375 300 psi 500 psi 2.00
2.5 2.875 300 psi 500 psi 2.25
3 3.500 300 psi 500 psi 2.50
4 4.500 300 psi 500 psi 3.00
5 5.563 300 psi 500 psi 3.25
6 6.625 300 psi 500 psi 3.50
8 8.625 300 psi 500 psi 4.25
10 10.750 300 psi 500 psi 4.75
12 12.750 300 psi 500 psi 5.25
  Notes:
  • Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron
  • Dimensions meet ANSI/AWWA C606-06
  • Center to End Dimensions are manufacture’s standard
  • Fittings larger than 14″ may be fabricated from steel pipe to ASTM A53, Gr. B or equivalent.
  • Coating options: Epoxy, Paint, Dacromet, Hot-Dip Galvanized.
  • UL-Listed & FM-Approved versions available upon request.
