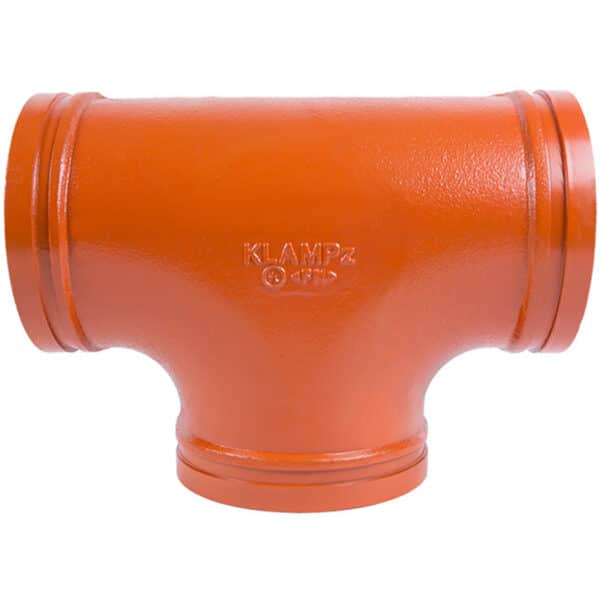

KLAMPz K20 Tee Pipe Fittings

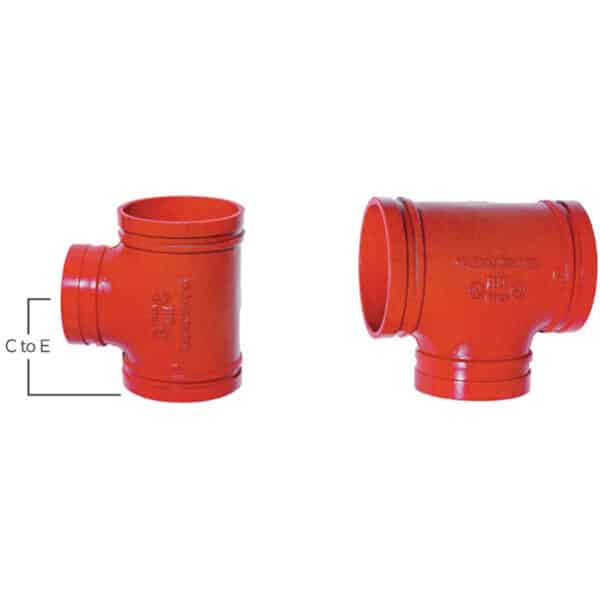

Dimensions: KLAMPz K20 Tee Pipe Fittings

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED

Part Number	Nominal Size Inches	Pipe OD Inches	UL/FM Working Pressure	Non-UL/FM Working Pressure	C To E (Inches)
K200125P(-ULFM)	1.25	1.660	300 psi	500 psi	2.75
K200150P(-ULFM)	1.5	1.900	300 psi	500 psi	2.75
K200200P(-ULFM)	2	2.375	300 psi	500 psi	3.25
K200250P(-ULFM)	2.5	2.875	300 psi	500 psi	3.75
K200300P(-ULFM)	3	3.500	300 psi	500 psi	4.25
K200400P(-ULFM)	4	4.500	300 psi	500 psi	5.00
K200500P(-ULFM)	5	5.563	300 psi	500 psi	5.50
K200600P(-ULFM)	6	6.625	300 psi	500 psi	6.50
K200800P(-ULFM)	8	8.625	300 psi	500 psi	7.75
K201000P(-ULFM)	10	10.750	300 psi	500 psi	9.00
K201200P(-ULFM)	12	12.750	300 psi	500 psi	10.00

  Notes:

• Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron.
• Dimensions adhere to ANSI/AWWA C606-06.
• Center to End Dimensions are manufacture’s standard.
• Fittings larger than 14″ may be fabricated from steel pipe A,STM A53, Gr. B or equivalent.
• Coating options: Epoxy, Paint, Dacromet, Hot-Dip Galvanized.
• UL-Listed & FM-Approved (ULFM) versions available upon request.
