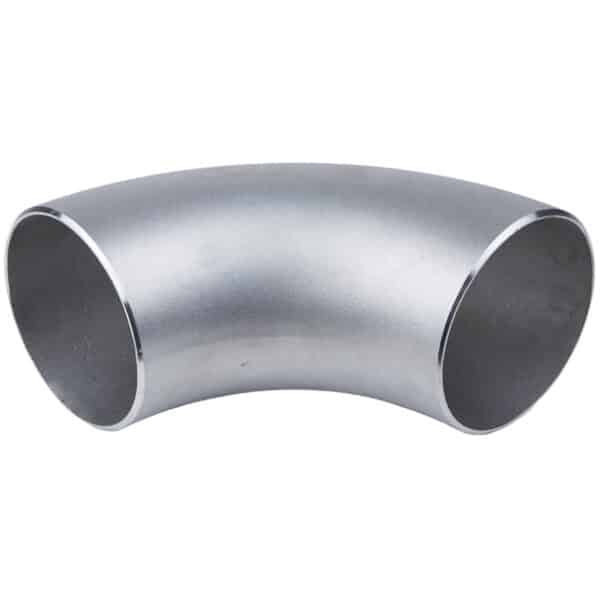

Long radius stainless steel 90-degree elbows are a popular option for changing flow direction between pipes. Our Long Radius (LRE) Schedule 10S elbows are manufactured in dimensions to suit a range of applications and provide a tight seal to reduce leakage.
Downloads:
| LONG RADIUS (LRE) | SCHEDULE 10S | ||||

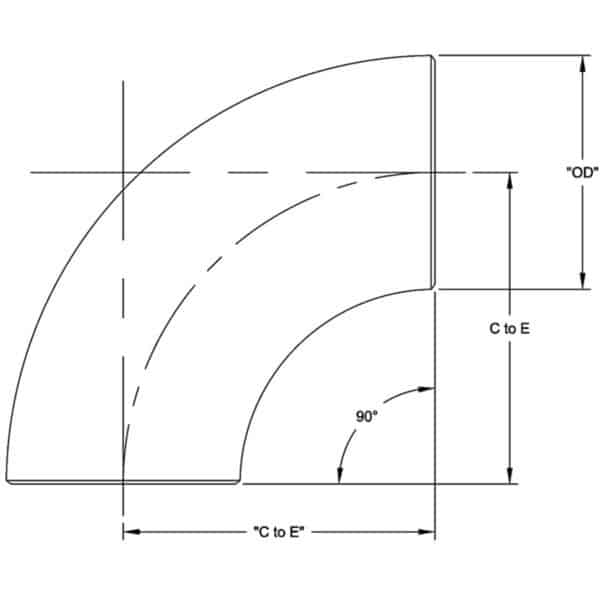

| PART NUMBER | NOM.PIPE SIZE | OUTSIDE DIAMETER (O.D.) | CENTER TO END (C to E) | INSIDE DIAMETER (I.D.) | WALL THICKNESS (T) |
| LRE0100-90 | 1 | 1.315 | 1.500 | 1.097 | 0.109 |
| LRE0125-90 | 1.25 | 1.660 | 1.875 | 1.442 | 0.109 |
| LRE0150-90 | 1.5 | 1.900 | 2.250 | 1.682 | 0.109 |
| LRE0200-90 | 2 | 2.375 | 3.000 | 2.157 | 0.109 |
| LRE0250-90 | 2.5 | 2.875 | 3.750 | 2.635 | 0.120 |
| LRE0300-90 | 3 | 3.500 | 4.500 | 3.260 | 0.120 |
| LRE0400-90 | 4 | 4.500 | 6.000 | 4.260 | 0.120 |
| LRE0500-90 | 5 | 5.563 | 7.500 | 5.295 | 0.134 |
| LRE0600-90 | 6 | 6.625 | 9.000 | 6.357 | 0.134 |
| LRE0800-90 | 8 | 8.625 | 12.000 | 8.329 | 0.148 |
| LRE1000-90 | 10 | 10.750 | 15.000 | 10.420 | 0.165 |
| LRE1200-90 | 12 | 12.750 | 18.000 | 12.390 | 0.180 |
