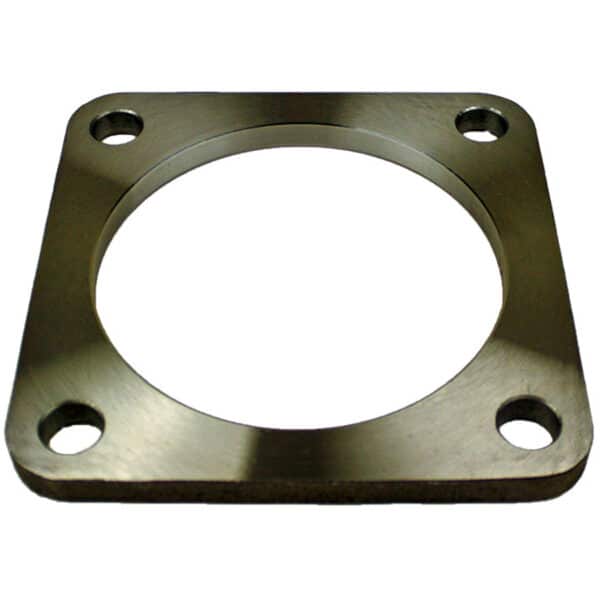

Square Exhaust Steel Flanges

SKU: PFES Categories: ,

These Square Exhaust Steel Flanges are manufactured with materials that meets American Water Works Association (AWWA C207-13) specifications. Additional material options available to suit a range of uses.

Downloads:

Add to Quote

Product Details

Related Products

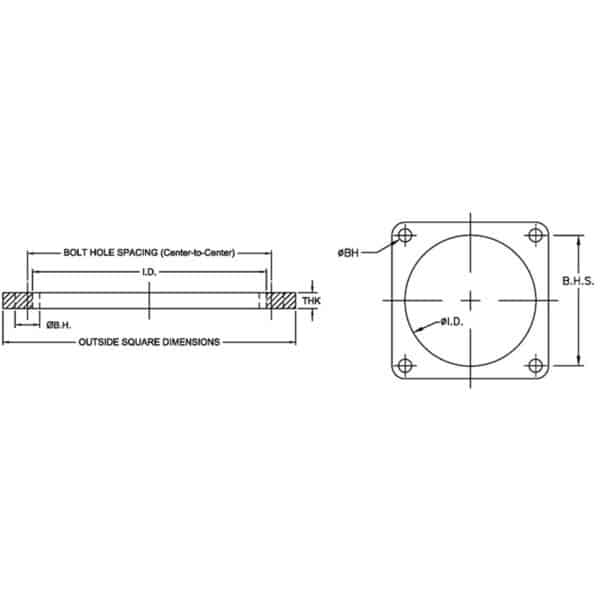

Dimensions: Square Exhaust Steel Flanges

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
API Part Number Size Outside Square I.D. Bolt Hole Spacing CTR-to-CTR Ø B.H. # B.H. THK Corner Radius Approx. Weight lbs
PFES0313 3 5.50 x 5.50 3.125 4.13 0.56 4 0.500 0.688 3.0
PFES0357 3 5.50 x 5.50 3.570 4.13 0.56 4 0.500 0.688 3.0
PFES0400 4 5.50 x 5.50 4.060 4.13 0.56 4 0.500 0.688 2.6
PFES0500 5 6.50 x 6.50 5.060 5.00 0.66 4 0.500 0.688 3.0
PFES0500-75BH 5 6.50 x 6.50 5.060 5.00 0.75 4 0.500 0.688 3.0
PFES0600 6 7.75 x 7.75 6.060 6.00 0.81 4 0.500 1.000 4.5
  Notes:
  • Flange material is steel (to AWWA C207-13 specifications).
  • Available in stainless steel 304L/316L.
