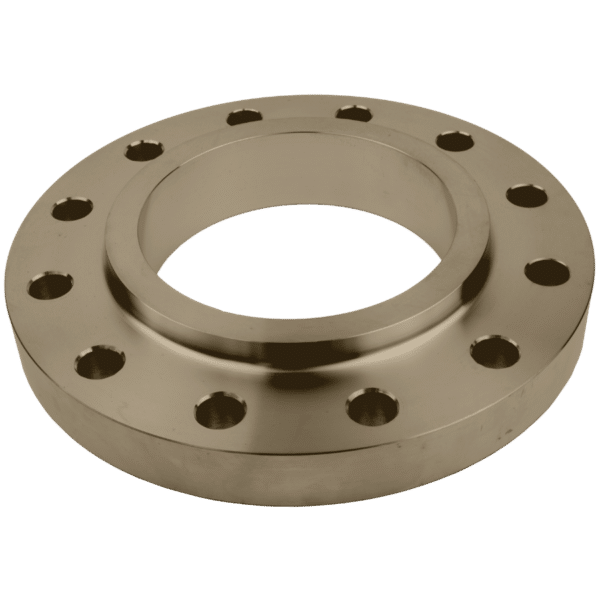

These Flat Face Slip On Flanges are fully machined and made of A105 Mild Steel. These Slip On Flanges are being offered at discount prices! Prices are included in the spec sheet below.
Downloads:
| API Part Number | Nominal Size | ANSI Class | I.D. | O.D. | THK | THK2 | B.H.C. | B.H.C. Dia. | # of Bolts | H.D. | R.H. | Weight (Lbs.) | Material | Price |
| FFS2000-30 | 20 | 300 | 20.20 | 30.50 | 2.50 | 3.75 | 27.00 | 1.375 | 24 | 23.125 | 0.313 | 315 | A105 Mild Steel | $173.25 |
| FFS2600-CL150-A | 26 | 150 | 26.25 | 34.25 | 2.69 | 3.69 | 31.75 | 1.38 | 24 | 28.25 | 0.380 | 250 | A105 Mild Steel | $137.50 |
| FFS3000-CL250-30 | 30 | 250 | 30.25 | 43.00 | 3.00 | 5.00 | 39.25 | 1.88 | 28 | 35.25 | 0.440 | 870 | A105 Mild Steel | $478.50 |
| FFS3000-CL300-30 | 30 | 300 | 30.25 | 43.00 | 3.62 | 6.12 | 39.25 | 1.88 | 28 | 34.75 | 0.440 | 870 | A105 Mild Steel | $478.50 |
| FFS3600-CL250-30 | 36 | 250 | 36.25 | 50.00 | 3.375 | 5.375 | 46.00 | 2.13 | 32 | 41.50 | 0.500 | 1275 | A105 Mild Steel | $701.25 |
| FFS3600-CL300-30 | 36 | 300 | 36.25 | 50.00 | 4.12 | 7.06 | 46.00 | 2.13 | 32 | 41.00 | 0.500 | 1275 | A105 Mild Steel | $701.25 |
| FFS6000-CL125 | 60 | 125 | 60.19 | 73.00 | 3.125 | 4.50 | 69.25 | 1.875 | 52 | 65.25 | 0.500 | 1250 | A105 Mild Steel | $1,450.00 |
| FFS6600 | 66 | 150 | 66.25 | 73.50 | 4.00 | 6.88 | 71.25 | 1.25 | 56 | 68.50 | 0.500 | 1625 | A105 Mild Steel | $1,550.00 |
