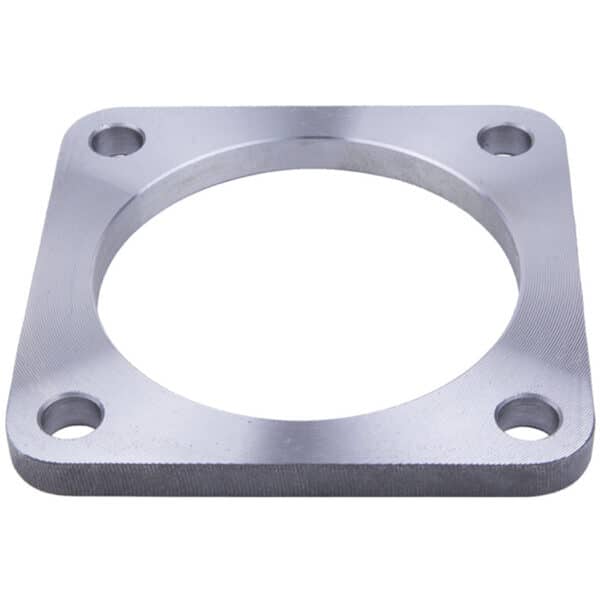

Square Exhaust Stainless Steel Flanges

SKU: SPFES Categories: ,

Square Exhaust Stainless Steel Flanges are manufactured in 304L and 316L stainless steel, ideal for strength and corrosion resistance. This exhaust flange’s material meets American Water Works Association (AWWA) C228 specifications.

Downloads:

Add to Quote

Product Details

Related Products

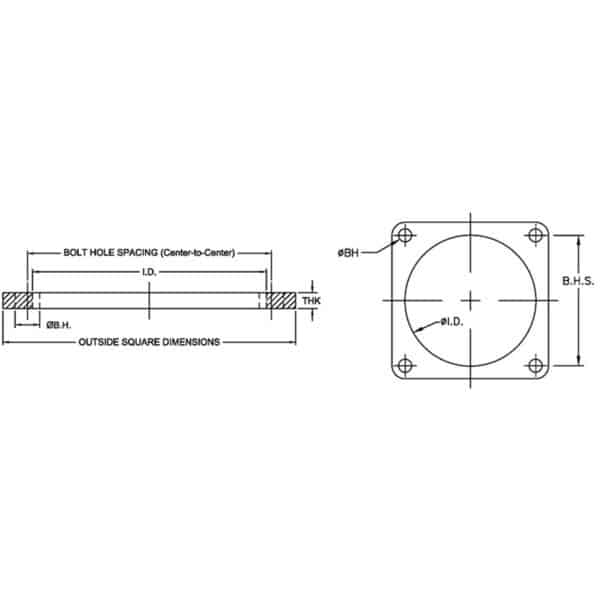

Dimensions: Square Exhaust Stainless Steel Flanges

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
API Part Number Size Outside Square I.D. Bolt Hole Spacing CTR-to-CTR Inches Ø B.H. # B.H. THK Corner Radius Weight Lbs
SPFES0313 3 5.50 x 5.50 3.125 4.13 0.560 4 0.500 0.688 3.0
SPFES0357 3 5.50 x 5.50 3.570 4.13 0.560 4 0.500 0.688 3.0
SPFES0400 4 5.50 x 5.50 4.060 4.13 0.560 4 0.500 0.688 2.6
SPFES0500 5 6.50 x 6.50 5.060 5.00 0.660 4 0.500 0.688 3.0
SPFES0500-75BH 5 6.50 x 6.50 5.060 5.00 0.750 4 0.500 0.688 3.0
SPFES0600 6 7.75 x 7.75 6.060 6.00 0.810 4 0.500 1.000 4.5
  Notes:
  • Flange material is stainless steel (to AWWA C228 specifications).
  • Available in stainless steel 304L/316L.
